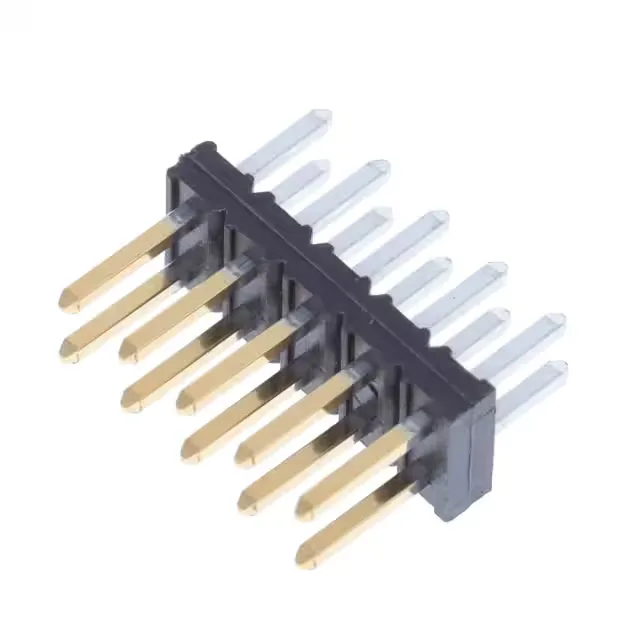

Amphenol ICC (FCI) Minitek® 2.00mm, Board to Board, Header, Male Pin, 10 Positions, 2 Rows, 0.079" (2.00mm) Pitch, Through Hole, Solder, Unshrouded, Push-Pull, Gold Flash Mating, 2A, 200V, UL94 V-0, Black, Bulk
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.335\" (8.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | Flash |
The 57102-F08-05LF: The gold flash provides corrosion resistance for occasional mating cycles; the tin tail wets reliably in wave or hand-solder processes.
The 10-position 57102-F08-05LF sits between the 6-position 57102-F08-03LF and the 14-position 57102-F08-07ULF in the same Minitek 2.00mm unshrouded header family.
It is quoted to order against your BOM quantity — no stock-holding claim is made.
This is a male pin header. It mates with a Minitek 2.00mm dual-row receptacle (female socket) of the same 10-position, 2-row layout. The receptacle part number depends on the termination style (crimp, IDC, or SMT) and is selected from the same Minitek 2.00mm series.
