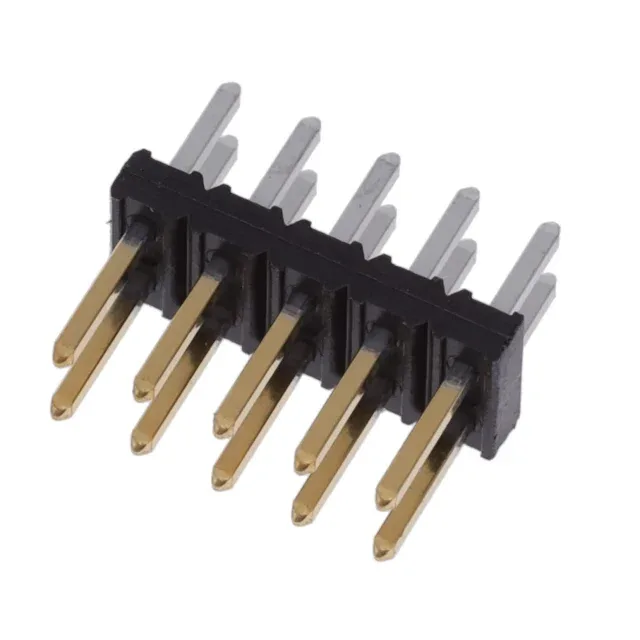

Amphenol ICC (FCI) Minitek® 2.00mm header, 10 positions, dual-row, unshrouded, through-hole, 2 A, 200 V, gold flash mating contacts, tin post, UL94 V-0, Tube package.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.335\" (8.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | Flash |
If your board layout has room for the extra four pins, the 14-position version gives you spare circuits for future expansion or alternate routing.
This means the material self-extinguishes within 10 seconds of a flame source—required for connectors mounted inside equipment enclosures where fire spread must be contained.
The 14-position sibling 57102-F08-07ULF is the closest functional alternative—same pitch, plating, and housing material, just four more circuits. The 10-position bulk-pack variant 57102-F08-05LF is electrically identical but ships in bulk rather than tube.
Yes, it is listed as RoHS Compliant.
Availability and current pricing confirmed at quote time.
