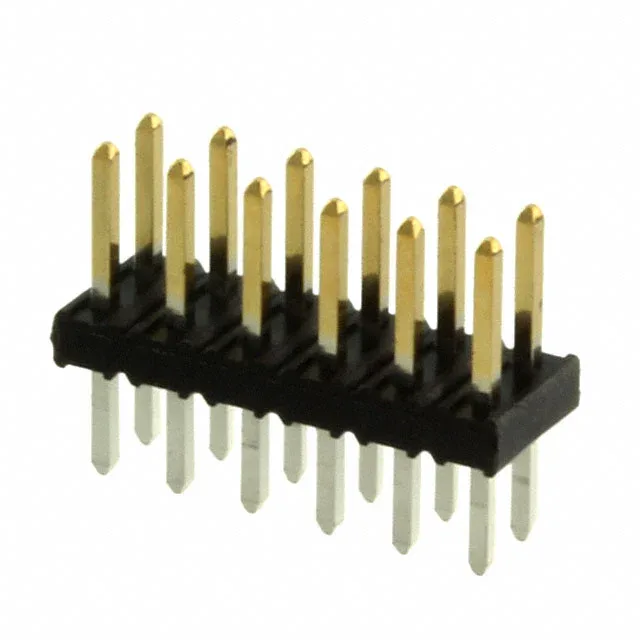

57102-F08-06ULF — Amphenol product photo
Amphenol

57102-F08-06ULF Amphenol ICC (FCI) Minitek 2.00mm Pin Header

MPN57102-F08-06ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm, 57102-F08-06ULF, unshrouded board-to-board header, 12 positions, 2 rows, 0.079" (2.00mm) pitch, 2A (AC/DC) rating, gold-flash mating contacts, through-hole solder termination, black thermoplastic UL94 V-0 housing.

$1.2600Ref. price · indicative, final on quote
57102-F08-06ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

57102-F08-06ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.335\" (8.51mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - matingFlash

Product details

12-Position Unshrouded Header for 2.00 mm Pitch Board-to-Board Links

Board Fit and Contact Geometry

Through-hole mounting with a 0.118" (3.00mm) solder tail and a total contact length of 0.335" (8.51mm). The 0.157" (4.00mm) mating length ensures good wipe inside the receptacle. Row spacing matches the pitch at 0.079" (2.00mm) — a symmetrical grid that simplifies trace routing between rows.

Mating Half and Assembly Notes

As an unshrouded header, it mates with a Minitek® 2.00mm receptacle housing (sold separately) that provides the latch. Confirm the receptacle part number against the position count and pitch before ordering.

Frequently asked questions

Where can I buy 57102-F08-06ULF and how do I get a price?

57102-F08-06ULF is available through our independent distribution network. Submit an RFQ with your target quantity; we confirm availability and current pricing at quote time. No stock-holding claim on this page.

What is the mating connector for 57102-F08-06ULF?

This unshrouded header mates with a Minitek® 2.00mm receptacle housing that provides the latch. The receptacle must match the 12-position, 2-row, 0.079" (2.00mm) pitch layout. The header side has push-pull fastening — no locking ramp.
