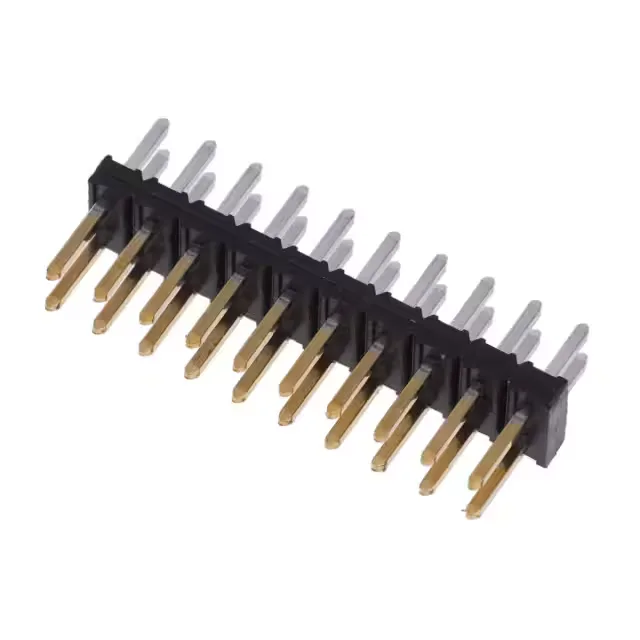

Amphenol ICC (FCI) Minitek® 2.00mm, 57102-F08-10ULF, unshrouded through-hole header, 20 positions, 2 rows, 0.079" (2.00 mm) pitch, 2 A AC/DC, gold flash mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.335\" (8.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | Flash |
The 57102-F08-10ULF is a 20-position, dual-row unshrouded header from the Minitek® 2.00mm series.
The 57102-F08-10ULF (20 positions) sits between the 14-position 57102-F08-07ULF and the 22-position 57102-F08-11ULF.
Yes, the lifecycle entry lists RoHS compliance for this part number.
This is an unshrouded male pin header. It mates with any standard 2.00 mm pitch female socket or IDC receptacle that accepts 0.157" (4.00 mm) mating pin length. The Minitek 2.00mm series includes matching receptacles and crimp housings.
