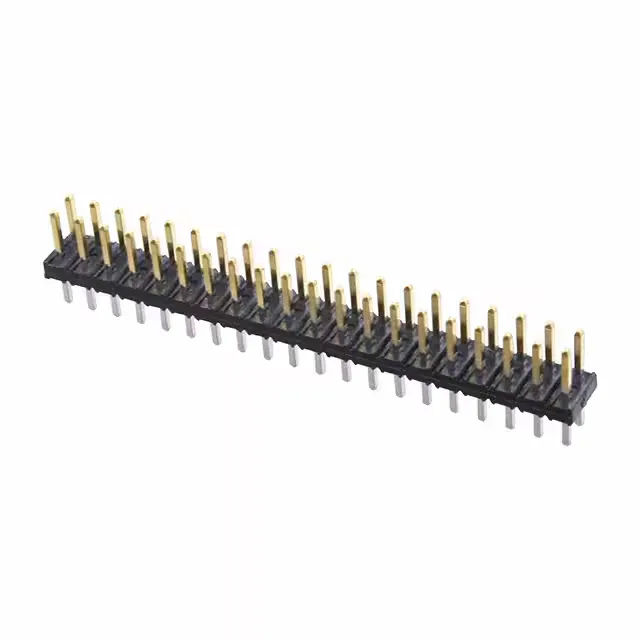

Amphenol ICC (FCI) Minitek® 2.00mm unshrouded header, 40 positions dual-row, through-hole solder termination, gold GXT™ mating finish, 2 A per contact, UL94 V-0 thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.315\" (8.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
This part is RoHS Compliant.
This is an unshrouded through-hole header with push-pull fastening. All 40 positions are loaded. The mating half is a standard 2.00 mm pitch receptacle (female socket) from the Minitek® 2.00mm series, such as the 57102-Gxx-xxxLF family. Confirm the mating receptacle's keying and polarization before committing the BOM line.
The 57102-G06-20LF is sourced through independent distribution. It is quoted to order against your BOM quantity — current pricing and availability are confirmed at RFQ. No stock-holding claim is made; each order is sourced per your request.
The mating half is a standard 2.00 mm pitch receptacle from the Minitek® 2.00mm series. The base product number 57102 covers both headers and receptacles in this series — confirm the specific female socket part number for your application.
