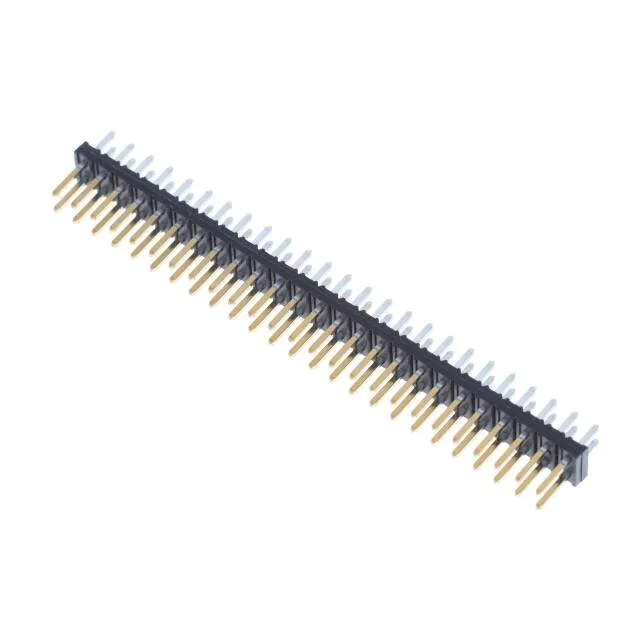

57102-S06-25LF — Amphenol product photo
Amphenol

57102-S06-25LF Amphenol ICC (FCI) Minitek 2.00mm 50-Pin

MPN57102-S06-25LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm, 57102-S06-25LF, Board to Board, Header, Male Pin, 50 Positions, 2 Rows, 0.079" (2.00mm) Pitch, Through Hole, Solder, Unshrouded, Push-Pull, Black, UL94 V-0, 2A (AC/DC), 200V (AC/DC), Gold GXT™ Mating Finish, 15.0µin (0.38µm), Tin Post Finish, 78.7µin (2.00µm), Active, RoHS Compliant, Box.

$2.6500Ref. price · indicative, final on quote
57102-S06-25LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

57102-S06-25LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBox
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions50
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Overall contact length0.315\" (8.00mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The square pin profile (0.079" x 0.079" typical for this pitch) ensures reliable contact wipe during insertion.

Sourced through independent distribution channels.

How This Compares to Siblings in the Series

The 57102-S06-04LF is the same header in an 8-position version — identical pitch, plating, and material stack. The 57102-G06-25LF is the 50-position sibling with a thicker 30.0 µinch (0.76 µm) gold mating finish instead of the 15.0 µinch on the -S06-25LF. For applications requiring more than 500 mating cycles or exposure to corrosive atmospheres, the -G06 variant is the upgrade path — same pinout, same tooling.

Frequently asked questions

Where can I buy 57102-S06-25LF and check current pricing?

No stock-holding or fixed price is listed here.

What is the mating connector for 57102-S06-25LF?

The mating half is a 50-position, dual-row, 2.00 mm pitch receptacle from the Minitek® 2.00mm series. The unshrouded header requires a socket that accepts the 0.157" (4.00 mm) mating pin length.

What is the pinout of 57102-S06-25LF?

All 50 positions are loaded in two rows at 2.00 mm pitch. The pinout follows the standard dual-row grid — row A on one side, row B on the other, with 0.079" (2.00 mm) row spacing. No depopulated positions.
