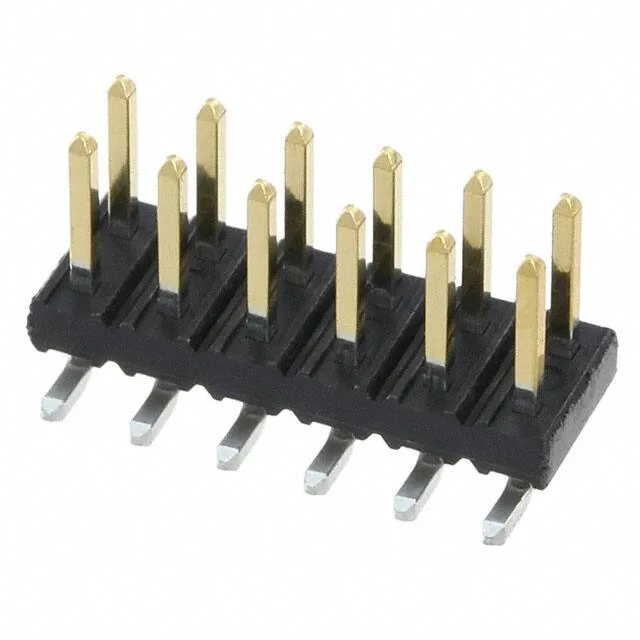

Amphenol ICC (FCI) Minitek® 2.00mm header, order code 57202-G52-06ALF, 12 positions, dual row, 0.079" (2.00mm) pitch, 2A, 200V, gold GXT™ mating contacts, surface mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 57202-G52-06ALF is the 12-circuit member of Amphenol ICC's Minitek® 2.00mm board-to-board header line.
The 12 positions are loaded in two rows spaced at 0.079" (2.00mm) — the same pitch as the mating interface, keeping the footprint symmetrical for routing.
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI).
