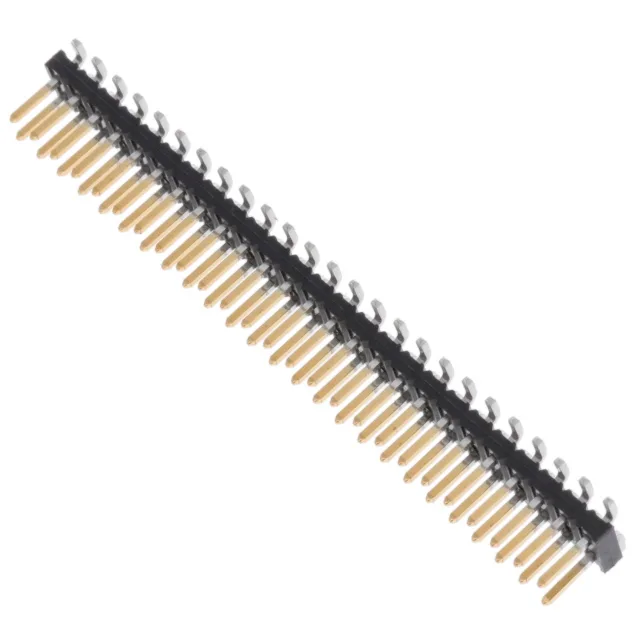

Amphenol ICC (FCI) Minitek® 2.00mm header, order code 57202-S52-25LF, 50 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold GXT™ mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Box |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 50 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 57202-S52-25LF is the 50-position member of Amphenol ICC (FCI)'s Minitek 2.00mm board-to-board header line. It carries gold GXT mating contacts rated 2 A at 200 V and mounts surface-mount unshrouded with push-pull fastening.
