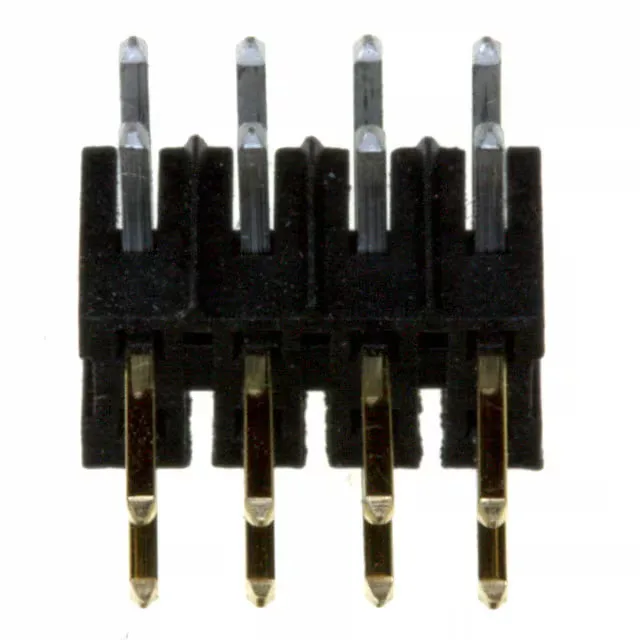

Amphenol 58102-G61-04LF
MPN58102-G61-04LF
Active
$0.7476Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
