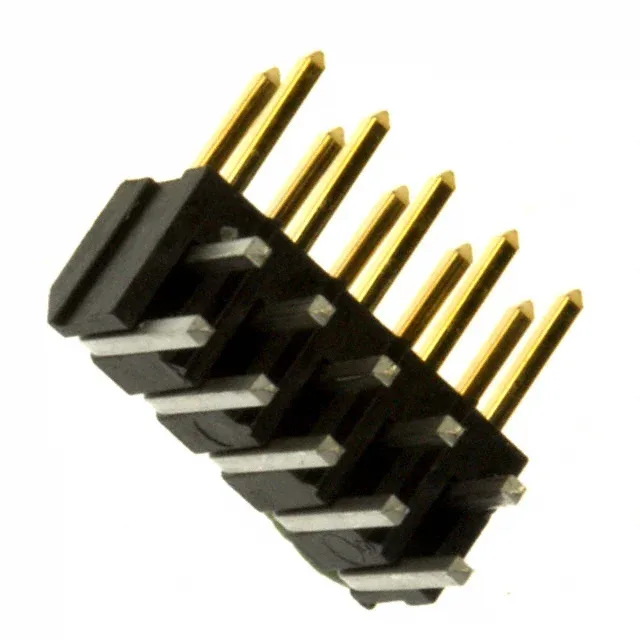

58102-G61-05LF — Amphenol product photo
Amphenol

58102-G61-05LF Amphenol ICC Minitek 10-Pin 2mm Right-Angle

MPN58102-G61-05LF
Active

Amphenol ICC (FCI) Minitek® series, 58102-G61-05LF, 10-position, 2-row, unshrouded header, 2.00mm pitch, right-angle through-hole, male pin, 30µin gold GXT mating finish, 2A, 200V, UL94 V-0, RoHS.

$1.7500Ref. price · indicative, final on quote
58102-G61-05LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

58102-G61-05LF Technical Specifications
ParameterValue
SeriesMinitek®
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.165\" (4.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions10
Row spacing - mating0.079\" (2.00mm)
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 58102-G61-05LF: This 10-position header uses a 2.00mm pitch on both the row and column spacing — the board footprint is a 2×5 grid with 0.079" (2.00mm) between centres each way. The 0.157" (4.00mm) mating pin length engages a standard Minitek receptacle; the 0.098" (2.50mm) solder post clears most PCB thicknesses up to 1.6mm without bottom-side protrusion issues.

Current, Voltage, and Material Limits

The UL94 V-0 rated housing means this header can be used inside equipment that requires a flammability rating — typical for industrial control boards and telecom line cards.

This unshrouded header mates with Minitek receptacle housings that accept 2.00mm pitch crimp terminals. Termination is solder-through-hole, right-angle orientation.

Frequently asked questions

What is the mating half for 58102-G61-05LF?

This unshrouded header mates with Minitek receptacle housings that use 2.00mm pitch crimp terminals.
