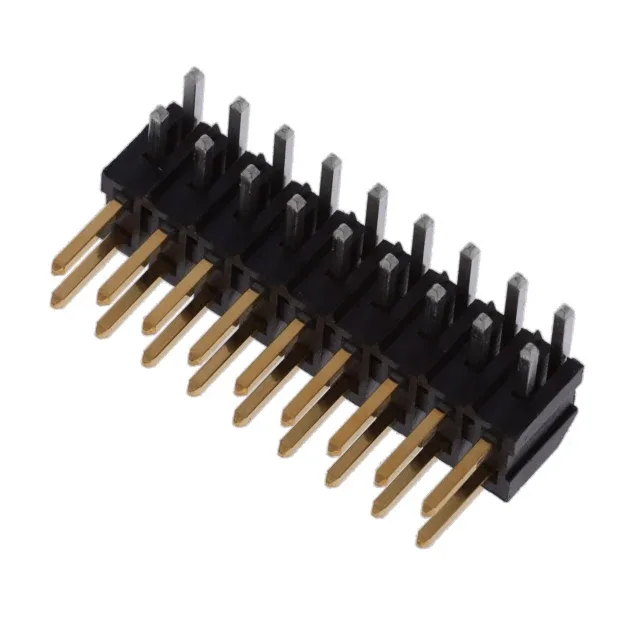

58102-G61-09LF — Amphenol product photo
Amphenol

58102-G61-09LF Amphenol ICC Minitek® 2.00mm Right-Angle

MPN58102-G61-09LF
Active

Amphenol ICC (FCI) Minitek® series, 58102-G61-09LF, unshrouded male pin header, 18 positions, 2 rows, 2.00 mm pitch, right-angle through-hole solder termination, 30 µinch gold GXT™ mating finish, rated 2 A per contact at 200 V, UL94 V-0 black thermoplastic housing.

$2.1200Ref. price · indicative, final on quote
58102-G61-09LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

58102-G61-09LF Technical Specifications
ParameterValue
SeriesMinitek®
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.165\" (4.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions18
Row spacing - mating0.079\" (2.00mm)
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Mating Compatibility and Termination Checklist

The 58102-G61-09LF: Termination is solder to through-hole — the square pins (0.025" square typical for 2.00 mm pitch) provide a reliable solder joint with good pull strength. No press-fit or surface-mount option on this variant; the right-angle body requires the board to have plated through-holes at the correct drill diameter for the post.

Peer Comparison: 18 vs 14 Positions

The 18-position variant (58102-G61-09LF) adds one more pair of pins — useful when the BOM requires four additional signal lines without changing the connector family or footprint pitch.
