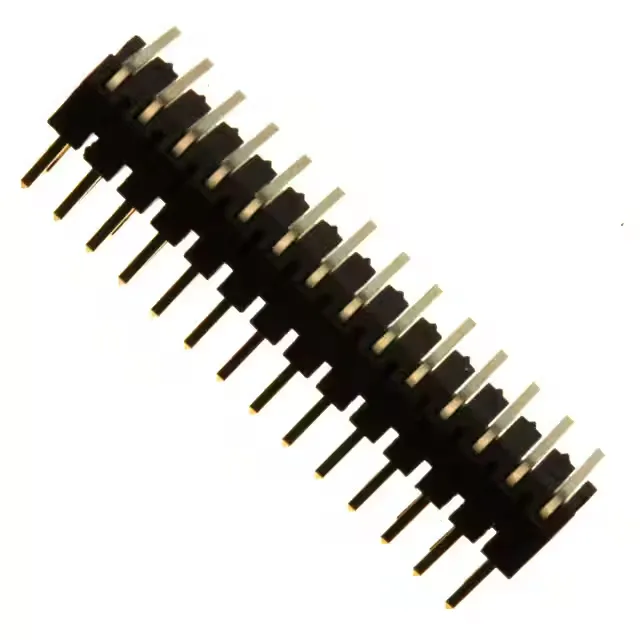

Amphenol ICC (FCI) Minitek® header, order code 58102-G61-14LF, 28 positions, dual row, 2.00 mm pitch, 2 A (AC/DC), 200 V (AC/DC), gold GXT™ mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 58102-G61-14LF: Unshrouded push-pull fastening means no keying or latch — the header relies on the mating receptacle's retention for cable-side hold.
Sourced in bulk packaging; quoted to order against the BOM quantity.
The style is Board to Board or Cable — it mates with a Minitek® receptacle or cable assembly at the same 2.00 mm pitch.
Pricing and stock levels are confirmed per RFQ against the BOM quantity — no live stock or price is published on this listing.
