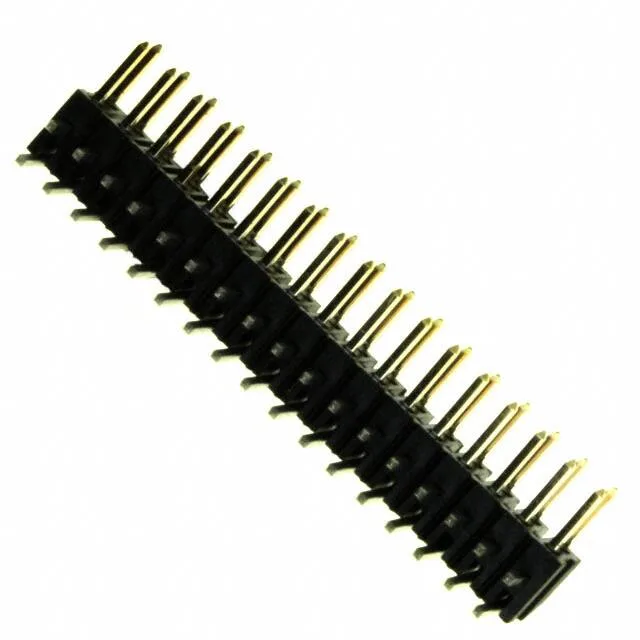

Amphenol ICC (FCI) Minitek header, order code 58102-G61-17LF, 34 positions, dual row, 2.00 mm pitch, 2 A (AC/DC), 200 V (AC/DC), gold GXT mating finish, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 34 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 58102-G61-17LF is the 34-circuit member of Amphenol ICC (FCI)'s Minitek unshrouded header line. It carries gold GXT mating contacts rated 2 A (AC/DC) at 200 V (AC/DC) and mounts through-hole right-angle with solder termination.
The header has 34 positions in a dual-row arrangement at 2.00 mm pitch.
