The 58102-G61-19LF: Dual-row layout at 2.00 mm pitch, rated 2 A and 200 V with gold GXT mating finish — a signal-density choice for board stacking or wire-to-board interconnects where the unshrouded profile keeps the mated height low.

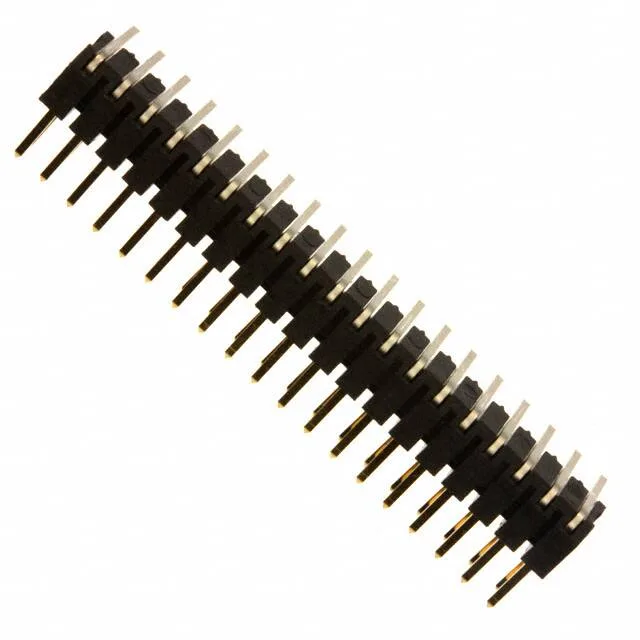

58102-G61-19LF Amphenol ICC Minitek Header, 38 Pos 2.00mm
MPN58102-G61-19LF
Active
Amphenol ICC (FCI) Minitek header, order code 58102-G61-19LF, 38 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold GXT mating contacts, through-hole right-angle, solder termination.
$2.2231Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 38 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 58102-G61-19LF and how do I get a price?
Orderable under the listed part number.
