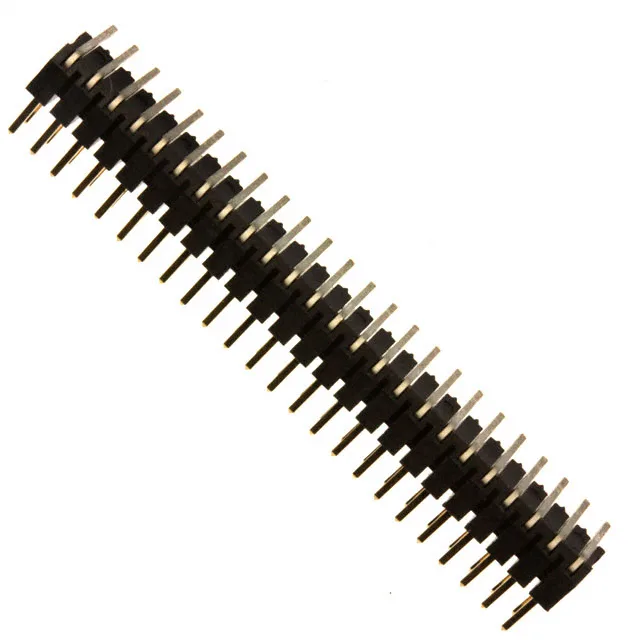

Amphenol ICC (FCI) Minitek® unshrouded header, 58102-G61-24LF, 48 positions, 2.00mm pitch, dual-row, through hole right angle, 30.0µin gold GXT™ mating finish, 2 A AC/DC, 200 V AC/DC, UL94 V-0 black thermoplastic housing.
58102-G61-24LF Amphenol ICC Minitek® Header 48 Pos 2mm
MPN58102-G61-24LF
Active
Amphenol ICC (FCI) Minitek® unshrouded header, 58102-G61-24LF, 48 positions, 2.00mm pitch, dual-row, through hole right angle, 30.0µin gold GXT™ mating finish, 2 A AC/DC, 200 V AC/DC, UL94 V-0 black thermoplastic housing.
$4.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMinitek®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 48 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for this header?
This is an unshrouded male pin header; it mates with a Minitek® 2.00mm pitch female socket or IDC receptacle. Confirm the mating half part number against your specific cable or board assembly.
