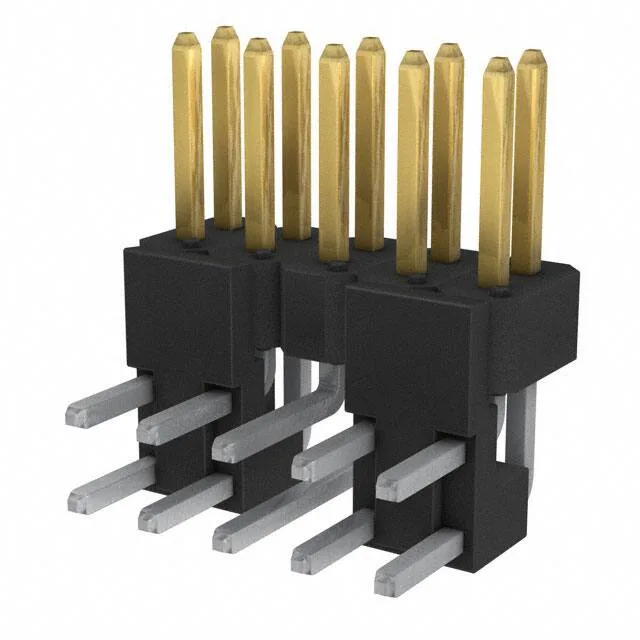

Amphenol ICC (FCI) BERGSTIK header, order code 6170052C185515LF, 10 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
Amphenol ICC (FCI) 6170052C185515LF BERGSTIK Header, 10 Pos
MPN6170052C185515LF
Active
Amphenol ICC (FCI) BERGSTIK header, order code 6170052C185515LF, 10 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.2263Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Features | Spacer |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the connector style and series for 6170052C185515LF?
The style is Board to Board and the series is BERGSTIK.
