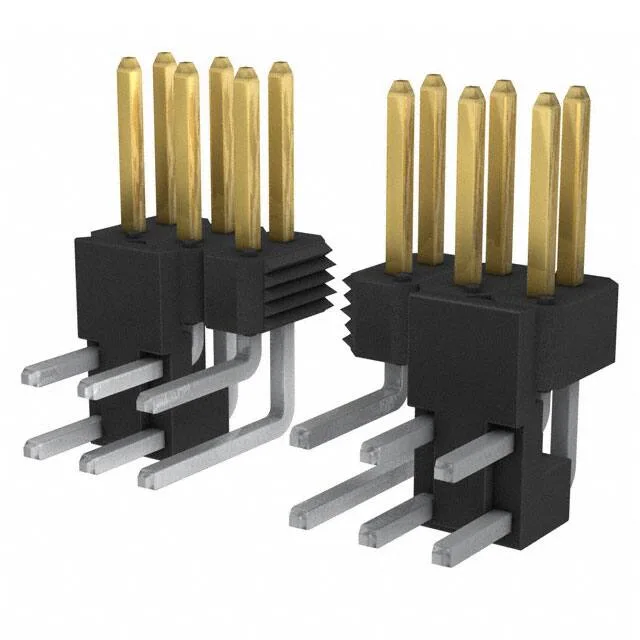

Amphenol ICC (FCI) BERGSTIK 6170082C185515LF, dual-row unshrouded male header, 16 positions, 0.100" (2.54mm) pitch, right-angle through-hole mount, gold-plated mating contacts, tin solder tails, push-pull fastening, UL94 V-0 thermoplastic, black insulation.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Features | Spacer |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6170082C185515LF: It is designed for board-to-board stacking where the mating receptacle slides over the pins without a shroud to guide alignment.
This dual-finish approach keeps the mating interface corrosion-resistant and the solder joint compatible with standard lead-free reflow profiles.
All 16 positions are loaded.
Yes, it is a standard BERGSTIK 16-pin header. The key variant details are the right-angle orientation, 0.240" (6.10mm) mating pin length, 0.130" (3.30mm) solder post length, and gold mating finish — confirm these dimensions match your board stack-up before substituting.
