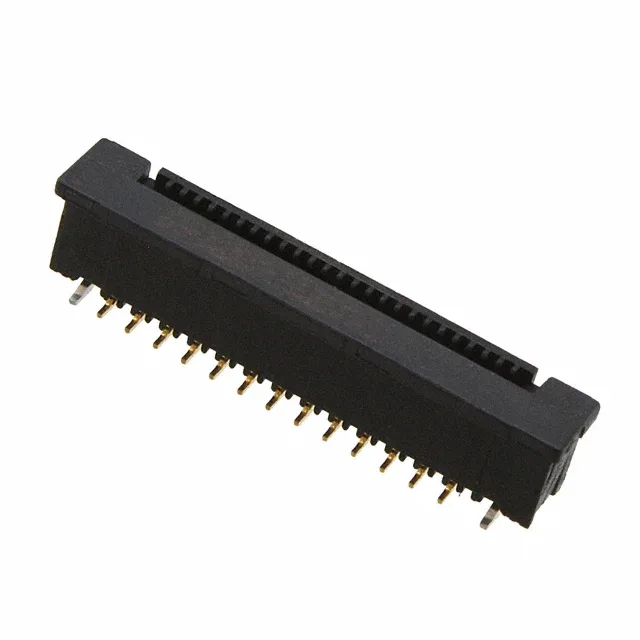

62674-261121ALF — Amphenol product photo
Amphenol

62674-261121ALF Amphenol ICC SFV-S 26-Pos 0.50mm FFC/FPC

MPN62674-261121ALF
Obsolete

Amphenol ICC (FCI) SFV-S FFC/FPC connector, order code 62674-261121ALF, 26 positions, 0.020" (0.50mm) pitch, ZIF actuation, gold-plated contacts, 0.5 A, 50 V, surface-mount, kinked-pin termination.

$0.9600Ref. price · indicative, final on quote
62674-261121ALF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

62674-261121ALF Technical Specifications
ParameterValue
SeriesSFV-S
Mounting typeSurface Mount
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPlastic, Glass Filled
Actuator materialPlastic, Glass Filled
Height above board0.161\" (4.10mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishGold
FFC, FCB thickness0.30mm
Positions26

Product details

26-position 0.50 mm pitch FFC/FPC connector

The 62674-261121ALF is the 26-circuit member of Amphenol ICC (FCI)'s SFV-S series of ZIF FFC/FPC connectors, accepting 0.30 mm-thick flat flex cable with straight or tapered ends. Gold-plated phosphor bronze contacts rate 0.5 A per circuit at 50 V, with 20 mating cycles specified. The vertical one-sided contact arrangement mates the FFC from above, and the UL94 V-0 glass-filled plastic housing stands 4.10 mm above the board.

Obsolete — sourcing options

The 62674-261121ALF is listed as Obsolete by Amphenol ICC (FCI). No official successor or pin-compatible cross is documented. Stock is confirmed at RFQ; quantities are lot-specific and sourced through independent surplus channels.
