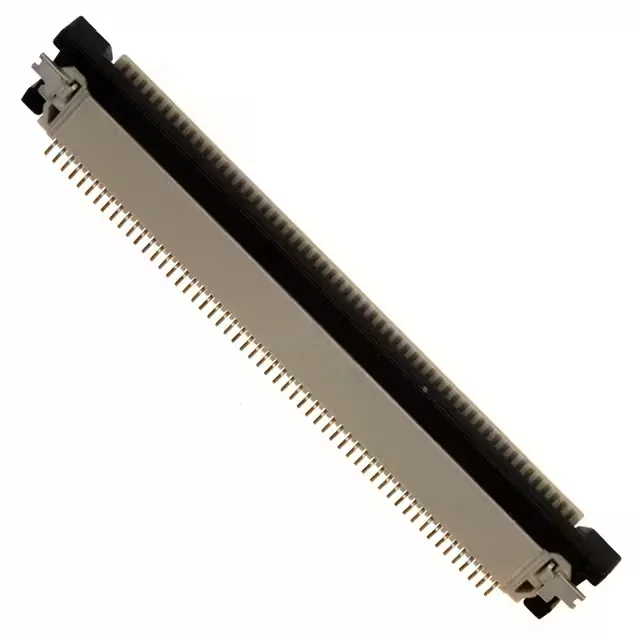

Amphenol ICC (FCI) OPU series FPC connector, order code 62684-5521N0ALF, 55 positions, 0.50 mm pitch, 0.5 A, gold-plated contacts, Zero Insertion Force (ZIF), surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | OPU |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C~85°C |
| Housing color | Beige |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Thermoplastic, Glass Filled |
| Height above board | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 55 |
| Contact finish thickness | 2.00µin (0.051µm) |
The 62684-5521N0ALF is the 55-circuit member of Amphenol ICC (FCI)'s OPU series FPC connector line. It carries gold-plated contacts rated 0.5 A at 50 V, with a ZIF slide-lock actuator that accepts 0.33 mm FPC and mounts surface-mount right-angle.
The pitch is 0.020" (0.50 mm).
