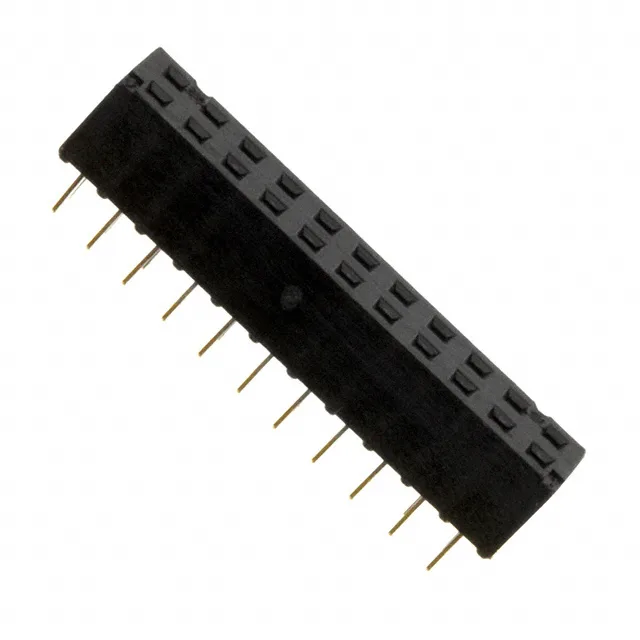

Amphenol ICC (FCI) Minitek® 2.00mm receptacle, order code 63453-122LF, 22 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 63453-122LF: The 0.177" (4.50mm) insulation height and 0.098" (2.50mm) post length set the mated stack height against the matching Minitek header.
Amphenol ICC (FCI) maintains the Minitek 2.00mm series as a current catalog line.
Style is Board to Board and the series is Minitek® 2.00mm — a dual-row, through-hole socket family.
The insulation material carries UL94 V-0 flammability rating. RoHS/REACH compliance is standard for the series; consult the product drawing for the current certificate.
