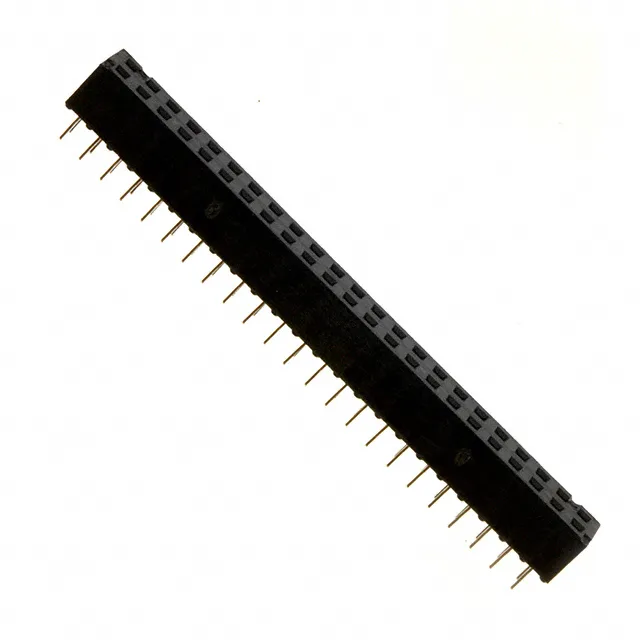

46-position board-to-board receptacle
The 63453-146LF is the 46-circuit member of Amphenol ICC's Minitek® 2.00mm receptacle line, a dual-row board-to-board socket with through-hole solder termination.
Amphenol ICC (FCI) Minitek® 2.00mm receptacle, order code 63453-146LF, 46 positions, dual row, 0.079" (2.00mm) pitch, 2 A, 200 V, gold mating contacts, through-hole, solder termination.
$3.1902Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Female Socket |
| Mounting type | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 46 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
