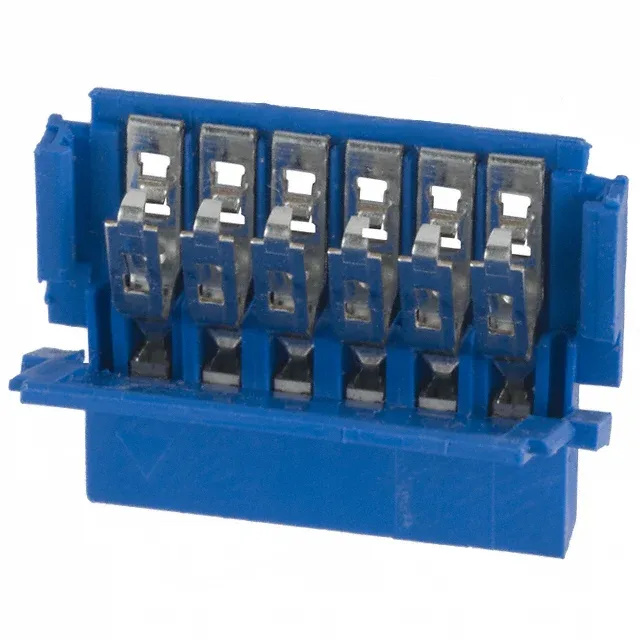

Amphenol 65801-006LF
MPN65801-006LF
Active
$1.4100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 6 |
| Contact finish thickness | 100.0µin (2.54µm) |
