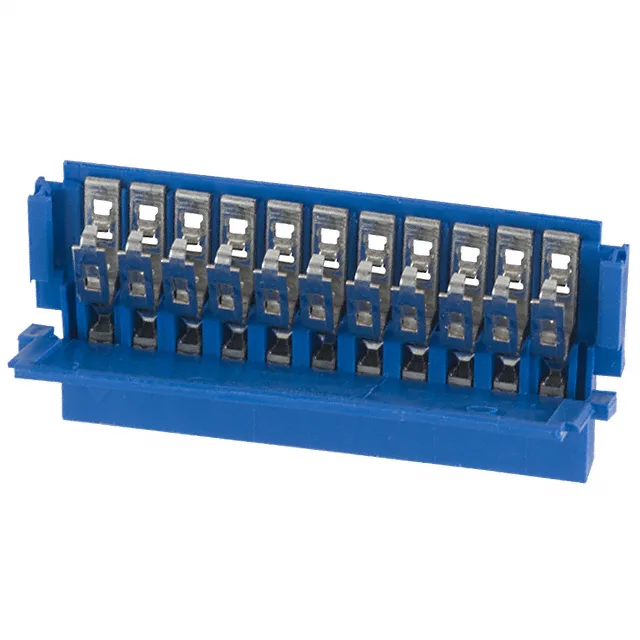

65801-011LF — Amphenol product photo
Amphenol

65801-011LF Amphenol ICC (FCI) Clincher FFC/FPC Receptacle

MPN65801-011LF
Active

Amphenol ICC (FCI) Clincher receptacle, order code 65801-011LF, 11 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, free-hanging, ZIF actuation, solder termination.

$2.3500Ref. price · indicative, final on quote
65801-011LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-011LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions11
Contact finish thickness100.0µin (2.54µm)

Product details

11-circuit ZIF receptacle for 0.100" pitch FFC/FPC

The 65801-011LF is an 11-circuit member of the Amphenol ICC (FCI) Clincher FFC/FPC receptacle line, accepting flat flex cable with a 0.100" (2.54mm) pitch. Rated 2 A per contact at 500 V, the tin-plated contacts are paired with copper nickel alloy terminals and a UL94 V-0 thermoplastic housing.

ZIF actuation and cable thickness range

The zero insertion force (ZIF) design uses a slide lock to secure the FFC/FPC without spring force during insertion — the actuator is black, the housing blue. Accepted cable thickness is 0.30 mm or 0.33 mm; the connector is rated for 100 mating cycles.

Frequently asked questions

What is the pitch of the 65801-011LF?

The pitch is 0.100" (2.54mm).

What FFC/FPC cable thickness does the 65801-011LF accept?

It accepts cable thicknesses of 0.30 mm and 0.33 mm.

What is the current rating of the 65801-011LF?

Rated 2 A per contact.

What compliance documentation is available for the 65801-011LF?

The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
