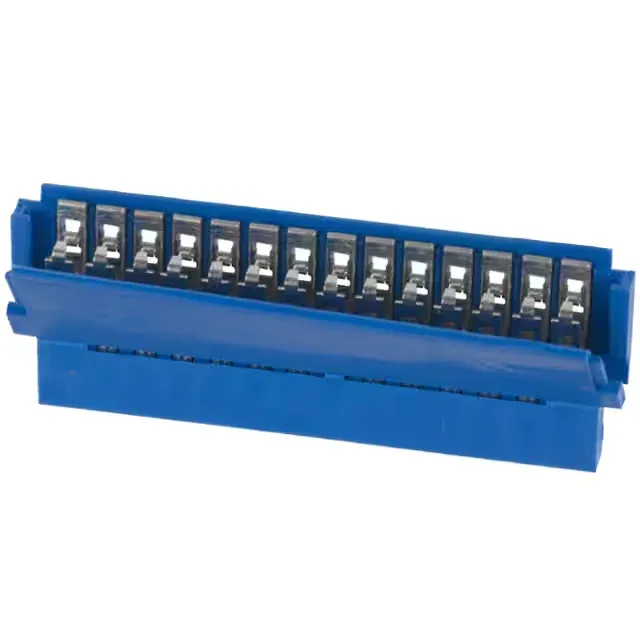

Amphenol ICC (FCI) Clincher FFC/FPC receptacle, order code 65801-014LF, 14 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, free-hanging in-line, solder termination, ZIF actuation.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Gray |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 14 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 65801-014LF is the 14-circuit member of Amphenol ICC (FCI)'s Clincher FFC/FPC receptacle line, accepting notched flat flex cable 0.33 mm thick.
RoHS compliant per current directive.
Rated for 100 mating cycles with tin-plated contacts from a copper nickel alloy. Solder termination on a free-hanging in-line mount; solder retention features aid assembly hold.
