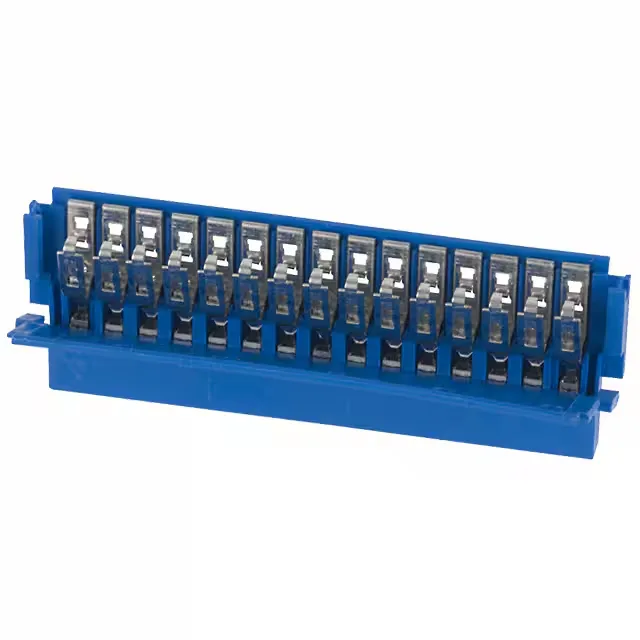

Amphenol ICC (FCI) Clincher receptacle, order code 65801-015LF, 15 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, free-hanging, solder termination, ZIF slide lock.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 15 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 65801-015LF is the 15-position member of Amphenol ICC (FCI)'s Clincher FFC/FPC receptacle line, accepting 0.30mm or 0.33mm flat flex cable.
The slide lock actuator accepts straight or tapered cable ends and holds the FFC in place without insertion force — the rated 100 mating cycles reflect the tin contact finish's wear envelope.
The pitch is 0.100" (2.54mm) for the 65801-015LF.
