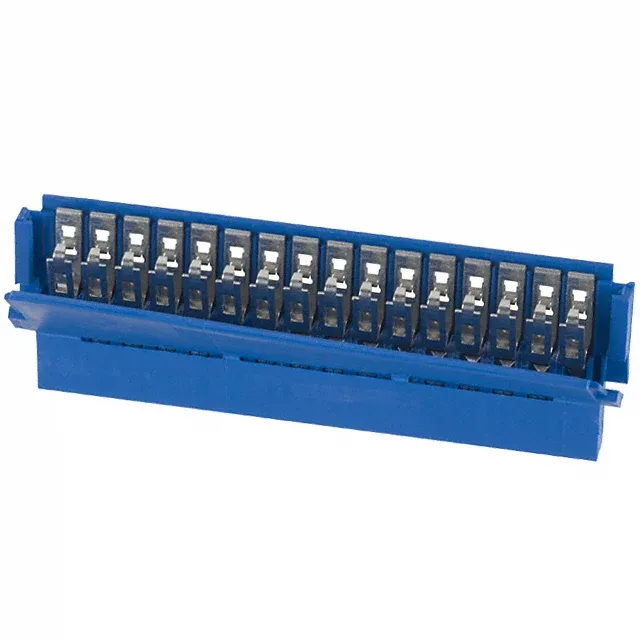

65801-016LF — Amphenol product photo
Amphenol

Amphenol ICC (FCI) Clincher 65801-016LF FFC/FPC Receptacle

MPN65801-016LF
Active

Amphenol ICC (FCI) Clincher receptacle, order code 65801-016LF, 16 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, free hanging (in-line), solder termination, ZIF slide lock.

$2.9400Ref. price · indicative, final on quote
65801-016LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-016LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions16
Contact finish thickness100.0µin (2.54µm)

Product details

2 A, 500 V FFC/FPC receptacle with ZIF slide lock

The 65801-016LF is the 16-position member of the Amphenol ICC (FCI) Clincher FFC/FPC receptacle line.

ZIF actuator and accepted FFC thickness

The slide-lock ZIF actuator accepts FFC thicknesses of 0.30mm and 0.33mm with a straight, tapered cable end type — the actuator wipes the contact on closure and holds the flex without a secondary latch. Rated for 100 mating cycles, the tin-plated contact finish suits applications where the FFC is mated infrequently during the product service life.

Frequently asked questions

What FFC thickness does the 65801-016LF accept?

The ZIF slide-lock accepts FFC thicknesses of 0.30mm and 0.33mm with a straight, tapered cable end.

What compliance documentation is available for the 65801-016LF?

The 65801-016LF is RoHS compliant.
