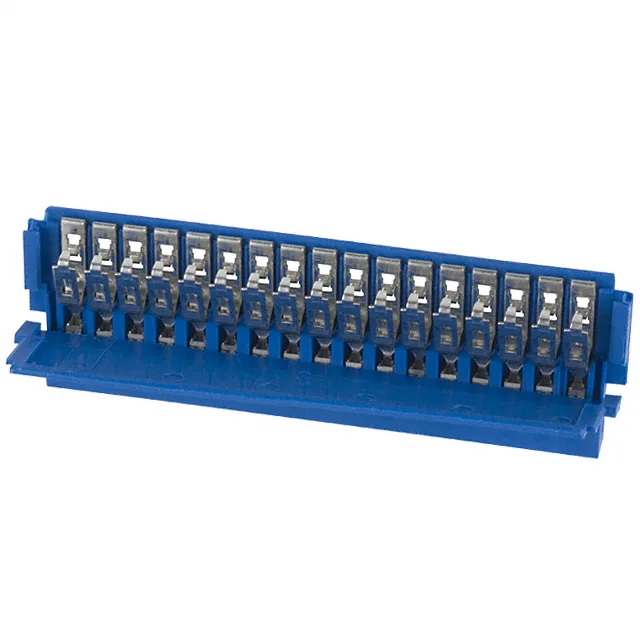

65801-017 — Amphenol product photo
Amphenol

65801-017 Amphenol ICC Clincher FFC/FPC Connector, 17 Pos

MPN65801-017
Active

Amphenol ICC (FCI) Clincher FFC/FPC receptacle, order code 65801-017, 17 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, IDC termination, free hanging, UL94 V-0.

$2.1517Ref. price · indicative, final on quote
65801-017 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-017 Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C ~ 105°C
Housing colorBlue
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
TerminationIDC
Mating cycles100
Contact finishTin
FFC, FCB thickness0.33mm
Positions17
Contact finish thickness100.0µin (2.54µm)

Product details

17-position Clincher FFC/FPC IDC receptacle

The 65801-017 is the 17-circuit member of Amphenol ICC (FCI) Clincher series, a free-hanging FFC/FPC receptacle with IDC termination. It accepts 0.33 mm thick FFC/FPC at 0.100" (2.54mm) pitch, rated 2 A per contact at 500 V with tin-plated contacts.

Pitch, thickness, and termination fit

The 0.100" (2.54mm) pitch matches standard ribbon cable spacing; the IDC termination pierces the FFC/FPC insulation directly, eliminating a separate crimp operation. Rated for 100 mating cycles with a -65°C to 105°C operating range and UL94 V-0 thermoplastic housing.

Frequently asked questions

What is the pitch and FFC/FPC thickness for 65801-017?

Pitch is 0.100" (2.54mm); accepted FFC/FPC thickness is 0.33 mm.

What compliance documentation does Amphenol ICC (FCI) provide for 65801-017?

The housing carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
