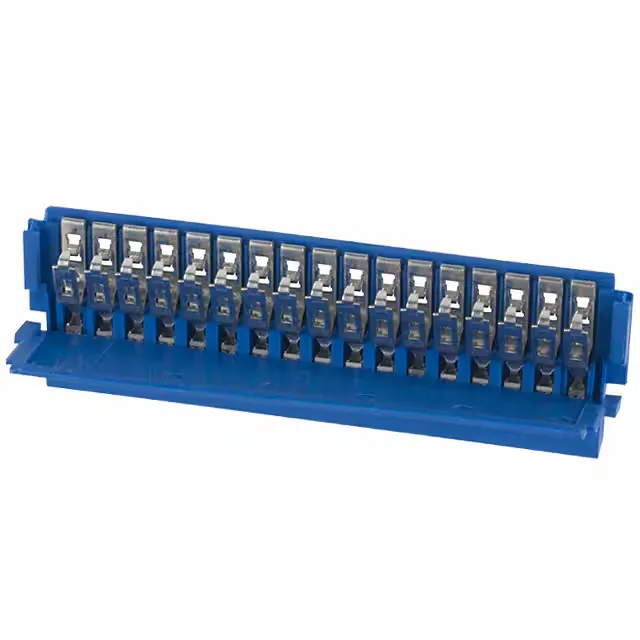

65801-017LF — Amphenol product photo
Amphenol

65801-017LF Amphenol ICC Clincher FFC/FPC 17-Pos 0.100"

MPN65801-017LF
Active

Amphenol ICC (FCI) Clincher™ FFC, FPC receptacle, order code 65801-017LF, 17 positions, 0.100" (2.54mm) pitch, tin-plated contacts, 2 A, 500 V, free hanging in-line, ZIF slide lock, solder termination.

$3.4200Ref. price · indicative, final on quote
65801-017LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-017LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions17
Contact finish thickness100.0µin (2.54µm)

Product details

What it carries and where it lands

The 65801-017LF is the 17-circuit member of Amphenol ICC's Clincher™ FFC/FPC receptacle line, a free-hanging in-line ZIF connector with a slide lock. It accepts 0.30 mm or 0.33 mm flat flex cable, carries 2 A per contact at 500 V, and is rated for 100 mating cycles with tin-plated contacts over a -65°C to 105°C operating range.

Pitch and cable fit

The 0.100" (2.54mm) pitch matches standard FFC conductor spacing — the 17 positions give a 1.7" wide cable footprint. The ZIF slide lock secures the cable without a tool; the tapered cable end guides insertion.

Frequently asked questions

What compliance documentation is available for the 65801-017LF?

The housing is rated UL94 V-0. RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.

What FFC thickness does the 65801-017LF accept?

The connector accepts FFC thicknesses of 0.30 mm and 0.33 mm.
