FFC/FPC receptacle with flip lock and solder retention
The 65801-033LF is the 4-position member of Amphenol ICC (FCI)'s Clincher FFC/FPC receptacle line, accepting 0.20 mm thick FFC with a notched cable end.

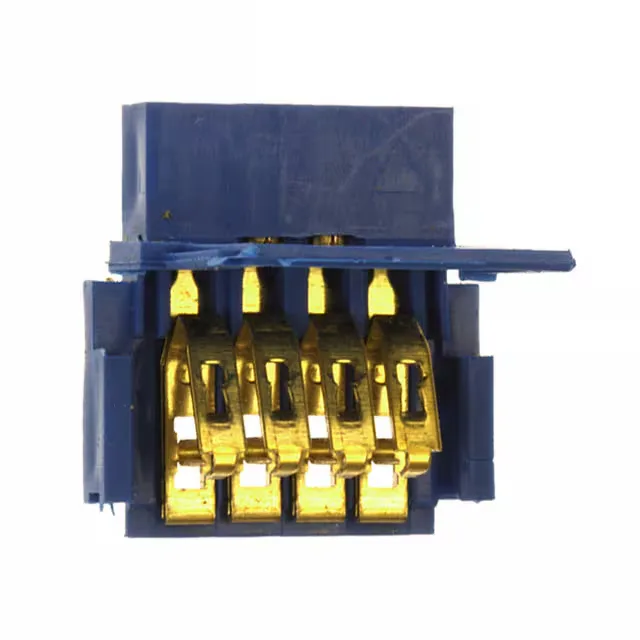

Amphenol ICC (FCI) 65801-033LF Clincher FFC/FPC Receptacle
MPN65801-033LF
Active
Amphenol ICC (FCI) Clincher FFC/FPC receptacle, order code 65801-033LF, 4 positions, 0.100" (2.54 mm) pitch, 2 A, 500 V, gold or GXT contact finish, free-hanging solder termination, flip lock, UL94 V-0.
$1.6400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesClincher™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Beige |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 4 |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Will the 65801-033LF drop into a panel specified for the 65801-034LF without rewiring?
The board footprint and cable interface are identical, so the 65801-033LF fits the same physical panel cutout and mates with the same FFC thickness.
What compliance documentation does Amphenol ICC (FCI) provide for the 65801-033LF?
The 65801-033LF is RoHS compliant.
