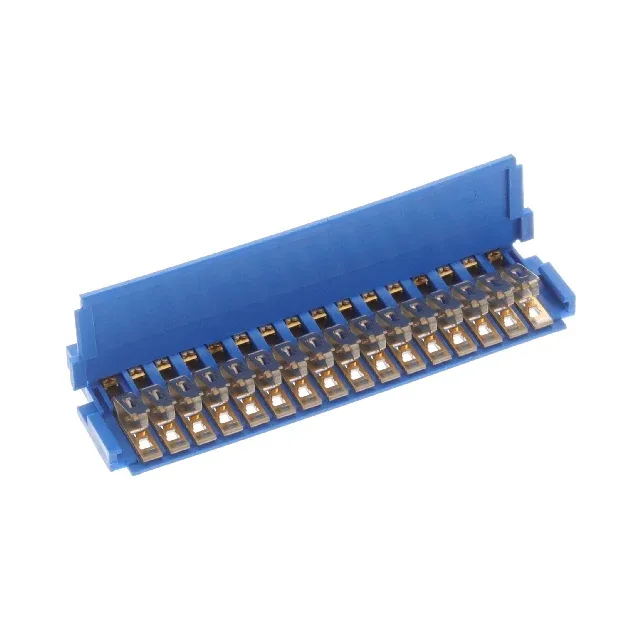

65801-045LF — Amphenol product photo
Amphenol

65801-045LF Amphenol ICC (FCI) Clincher FFC/FPC 16Pos 2.54mm

MPN65801-045LF
Active

Amphenol ICC (FCI) Clincher FFC/FPC receptacle, order code 65801-045LF, 16 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, gold-plated contacts, free-hanging, flip-lock, solder termination.

$6.1000Ref. price · indicative, final on quote
65801-045LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-045LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBeige
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

16-position Clincher FFC/FPC receptacle

The 65801-045LF is the 16-position member of Amphenol ICC (FCI)'s Clincher FFC/FPC receptacle line, accepting 0.20 mm-thick flat flex cable with a tapered end. Rated 2 A per contact at 500 V with gold or GXT-plated contacts on a copper nickel alloy base, and a 0.100" (2.54 mm) pitch that matches standard ribbon cable layouts.

Flip-lock and contact finish

The flip-lock actuator in beige secures the FFC without a secondary latch; the contact finish thickness is 30.0 µin (0.76 µm) gold, supporting 100 mating cycles.
