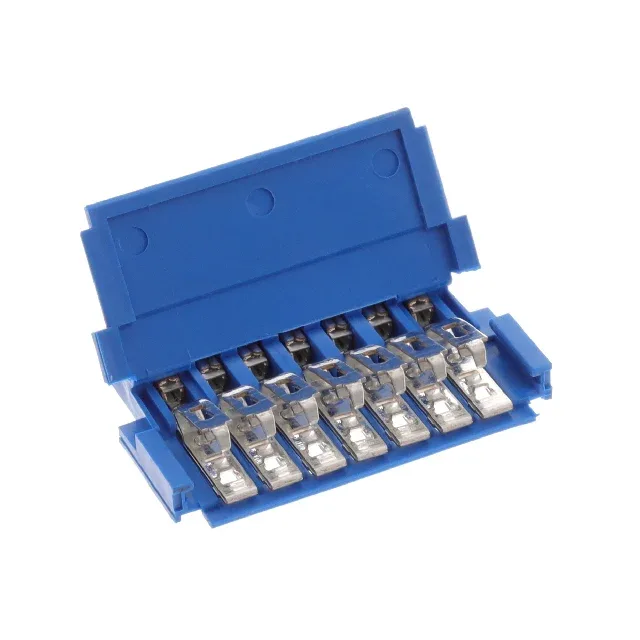

The 65801-107LF: The 7 positions cover a single-row signal or power group; at 2A per contact the total current across all 7 circuits is 14A, but the derating curve in the product drawing should be checked for elevated ambient temperatures above 25°C. The ZIF (zero insertion force) slide lock means the FFC is inserted without force, then the actuator is slid to clamp the contacts — no prying or bending of the cable end.
Mating and Cable Fit — What Goes Where
This is a receptacle connector that mates with a matching Clincher™ plug or a compatible FFC cable end. The cable end type is straight or tapered, and the accepted FFC/FPC thickness is 0.30mm or 0.33mm. The slide lock is the locking feature — push the actuator forward to lock the cable in place after insertion. In a production test fixture where the cable is swapped weekly, that's about two years of service before the contact resistance may increase.
Lifecycle and Sourcing — Active Production, No EOL Concerns
Pricing and stock are not listed on this page; availability is confirmed at RFQ time through our independent distribution network. The part is sourced per order — no stock-holding claim, but we can quote against your BOM quantity.
