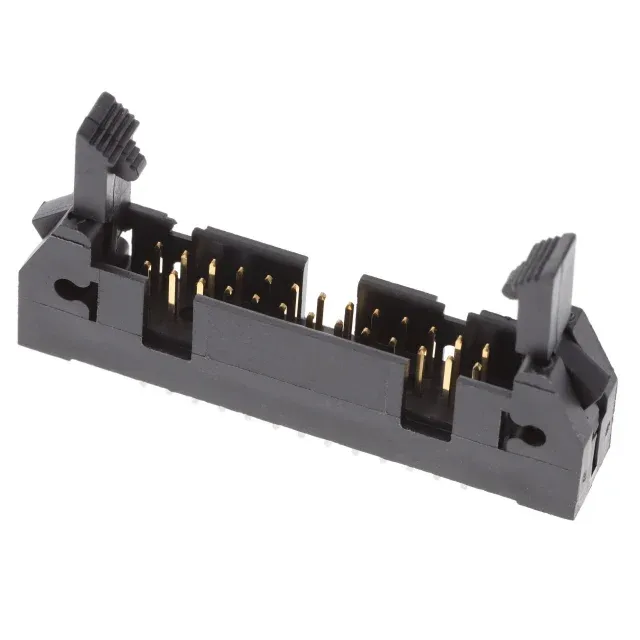

65863-075LF — Amphenol product photo
Amphenol

65863-075LF Amphenol ICC Quickie™ Header 26 Pos 2.54mm

MPN65863-075LF
Active

Amphenol ICC (FCI) Quickie™ Series, 26-position dual-row, 0.100" (2.54mm) pitch, shrouded 4-wall header, through-hole solder termination, male pin square contacts with 30µin gold GXT™ on mating face, latch lock/eject hooks, UL94 V-0 black thermoplastic housing.

$3.1800Ref. price · indicative, final on quote
65863-075LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65863-075LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.640\" (16.26mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Position Dual-Row Shrouded Header for Wire-to-Board

The 65863-075LF: The latch lock/eject hooks provide a positive mechanical retention between the header and its mating housing, making this connector suited for environments where vibration or cable strain could otherwise separate an unlatched pair.

The base product number is 65863, and the part ships in tray packaging.

Peer Comparison: 26 vs 34 Positions

If the BOM calls for 34 circuits, the 079LF is a drop-in replacement with the same footprint length per row.

Frequently asked questions

What is the mating connector for 65863-075LF?

The 65863-075LF is a shrouded header designed to mate with a Quickie™ series receptacle housing that accepts the corresponding crimp terminals. The latch lock/eject hooks on the header engage with the mating housing's locking ramps. Confirm the housing part number and terminal part number from the Quickie™ series catalog for a complete wire-to-board interconnect.

Is 65863-075LF compatible with 2.54mm IDC cable?

The header mates with a Quickie™ IDC receptacle that terminates the ribbon cable, providing a reliable board-to-cable connection.
