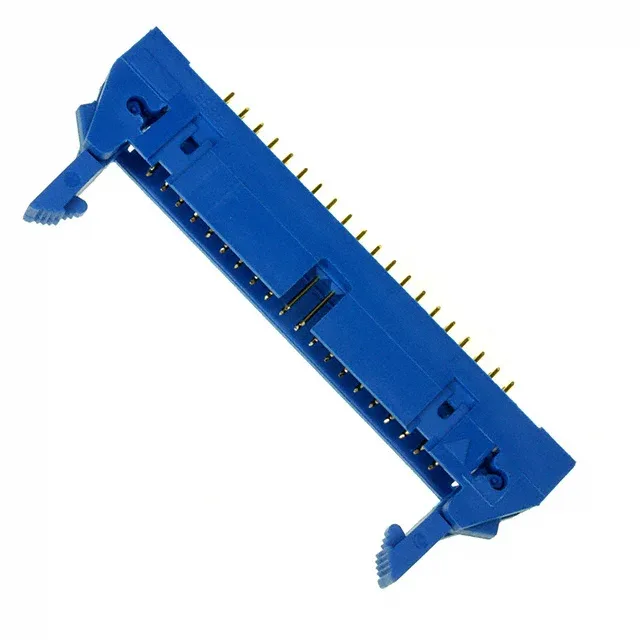

65863-085LF — Amphenol product photo
Amphenol

65863-085LF Amphenol ICC Quickie™ Header 40POS 2.54mm

MPN65863-085LF
Active

Amphenol ICC (FCI) Quickie™ series, 40-position dual-row header, 2.54mm pitch, shrouded 4-wall, latch lock/eject hooks, through-hole solder, 30µin gold GXT™ mating finish, UL94 V-0.

$4.2400Ref. price · indicative, final on quote
65863-085LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65863-085LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.640\" (16.26mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.105\" (2.67mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-Position Dual-Row Quickie™ Header with Latch Lock

The 65863-085LF: This is a 40-position, dual-row, shrouded header from the Quickie™ series by Amphenol ICC (FCI).

This header is designed for board-to-cable/wire applications. It mates with a Quickie™ series IDC socket or crimp receptacle (same 2.54mm pitch, dual-row). The latch lock engages with the mating half's ejector hooks — confirm your receptacle has the matching latch feature. The insulation height of 0.640" (16.26mm) gives clearance for board-edge routing in tight enclosures.

Supplied in tray packaging.

Frequently asked questions

Where can I buy the 65863-085LF and how do I get a price?

The 65863-085LF is sourced to order through our distribution network. No stock-holding claim is made on this page.
