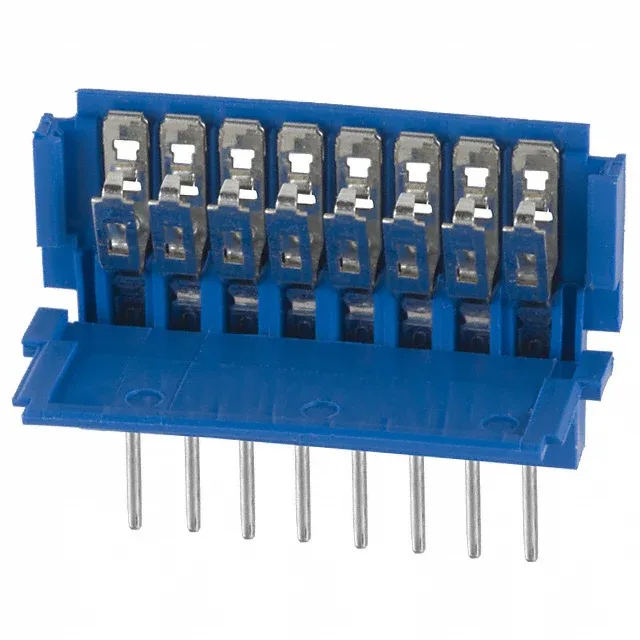

66226-008LF — Amphenol product photo
Amphenol

66226-008LF Amphenol ICC FFC Header 8 Pos 2.54mm Pitch ZIF

MPN66226-008LF
Active

Amphenol ICC (FCI) Clincher™ FFC header, 8 positions, 0.100" (2.54 mm) pitch, ZIF slide-lock actuator, tin-plated contacts rated 2 A at 500 V, free-hanging solder termination, UL94 V-0 blue thermoplastic housing.

$1.3400Ref. price · indicative, final on quote
66226-008LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-008LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeNotched
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorGray
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions8
Contact finish thickness100.0µin (2.54µm)

Product details

Pitch, Cable Thickness, and ZIF Actuation

The 66226-008LF: The connector accepts FFC 0.33 mm thick — match the cable thickness to the actuator gap; a thicker cable jams the ZIF mechanism, a thinner one loses contact force. Zero Insertion Force (ZIF) with a slide lock: the actuator opens the contact beams so the cable slides in without scraping the plating. Once the cable is seated, the slide lock closes the beams and holds the cable — no secondary latch needed. A flipped flex shorts the wrong row, so confirm the contact side before inserting.

RoHS compliant. No official successor or cross-reference from the manufacturer.

Frequently asked questions

Is 66226-008LF a zero insertion force (ZIF) connector?

Yes — the ZIF actuator opens the contact beams so the FFC cable slides in without force. The slide lock then closes the beams and retains the cable.
