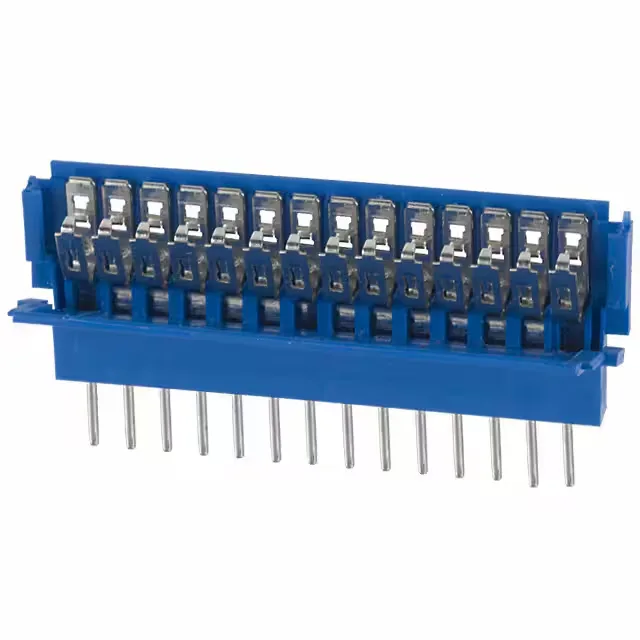

66226-014LF — Amphenol product photo
Amphenol

66226-014LF Amphenol ICC FCI Clincher FFC Header 14 Pos

MPN66226-014LF
Active

Amphenol ICC (FCI) Clincher™ FFC header, 14 positions, 0.100" (2.54mm) pitch, ZIF actuation, tin-plated contacts, 2 A, 500 V, UL94 V-0, free-hanging solder termination.

$1.9700Ref. price · indicative, final on quote
66226-014LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-014LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions14
Contact finish thickness100.0µin (2.54µm)

Product details

14-Position FFC Header for 2.54mm Pitch Cable

The 66226-014LF is a 14-position FFC header from the Amphenol ICC (FCI) Clincher™ series, designed for 0.100" (2.54mm) pitch flat flex cable.

RoHS compliant per the listed compliance status.

Position Count Comparison with Siblings

The 14-position 66226-014LF sits between the 10-position 66226-010LF and the 16-position 66226-016LF in the same Clincher™ series, all sharing the same 0.100" pitch, tin finish, and ZIF slide-lock actuator. The 16-position sibling (66226-016LF) uses a flip lock/backlock instead of the slide lock — a different actuator style that may affect cable insertion force and tooling preference.

FFC Compatibility and Termination

Termination is solder — the header is free-hanging (in-line), not board-mount, so it connects to the FFC and then solders to wires or a PCB via the solder pads.

Frequently asked questions

Is the 66226-014LF a ZIF connector?

Yes, it uses a Zero Insertion Force (ZIF) slide-lock actuator — the FFC is inserted without force, then the slide lock clamps the cable in place.

What does the 'LF' suffix mean in 66226-014LF?

The 'LF' suffix indicates RoHS compliance (lead-free) for this Amphenol ICC (FCI) part number.
