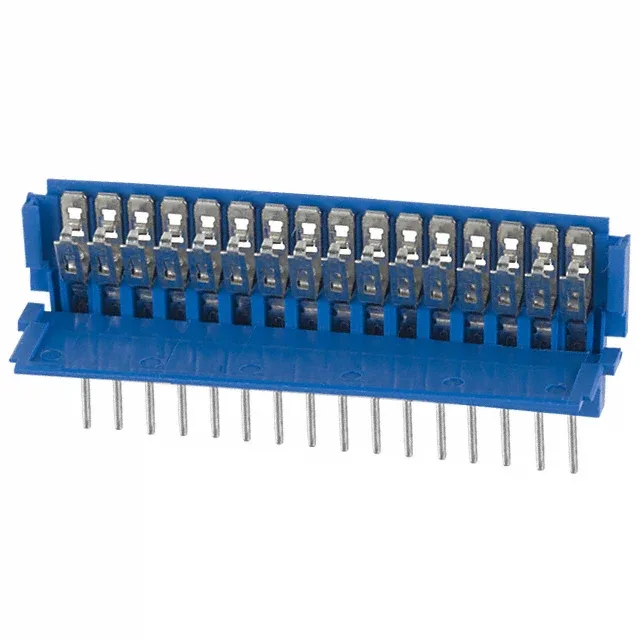

66226-016LF FFC Header 16 Pos 2.54mm Pitch ZIF

MPN66226-016LF
Active

Amphenol ICC (FCI) Clincher™ series, 66226-016LF, 16-position FFC header, 0.100" (2.54mm) pitch, ZIF actuation with flip lock and backlock, tin-plated contacts rated 2 A, solder termination, free-hanging mount, UL94 V-0 housing.

$2.0100Ref. price · indicative, final on quote
66226-016LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-016LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeTapered
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.30mm
Positions16
Contact finish thickness100.0µin (2.54µm)

Product details

The 66226-016LF: With 16 positions, the connector handles a 16-conductor ribbon, common for parallel data or control signals in industrial and consumer gear. This avoids damaging the delicate cable pads and holds the connection against vibration — no secondary latch needed.

How It Stacks Against the 11-Position and 7-Position Siblings

The 66226-016LF (16 positions) shares the same 0.100" pitch, ZIF flip lock, tin contacts, and 2 A rating with the 66226-011LF (11 positions) and 66226-007LF (7 positions).

The free-hanging (in-line) mount and solder termination mean it's designed for cable-to-board connections where the header is soldered to a PCB and the FFC plugs in — typical for printer heads, display interfaces, and control panel ribbon cables.

Frequently asked questions

What is the pitch and position count of 66226-016LF?

The pitch is 0.100" (2.54mm) and it has 16 positions — a standard FFC footprint for 16-conductor ribbon cables.

Is 66226-016LF a ZIF connector?

Yes, it is a Zero Insertion Force (ZIF) connector with a flip lock and backlock actuator — the FFC slides in without force, then the lock secures it.

What are equivalent parts to 66226-016LF?

The 66226-011LF (11 positions) and 66226-007LF (7 positions) are identical in pitch, ZIF mechanism, contacts, and rating — only the position count differs. They are not direct replacements but share the same series and footprint.
