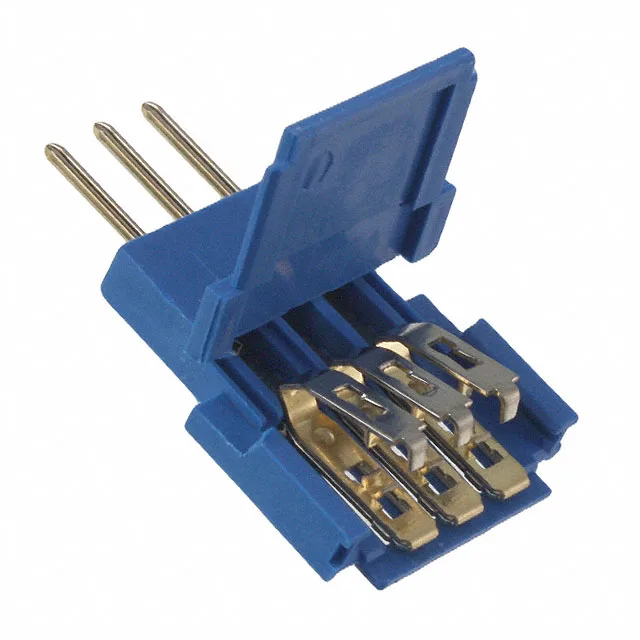

Amphenol ICC (FCI) Clincher™ FFC header, order code 66226-035LF, 3 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, ZIF flip-lock actuator, free-hanging solder termination, gold or GXT™ contact finish.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC |
| Connector (Contact type) | Header |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Natural |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 3 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 66226-035LF is the 3-circuit member of Amphenol ICC's Clincher™ FFC header line, accepting 0.20 mm-thick flat flex cable with a zero-insertion-force flip-lock actuator.
Free-hanging (in-line) mounting with solder termination suits cable-to-board connections where the header is not board-mounted; the tapered cable end type aids alignment before the flip lock engages.
The pitch is 0.100" (2.54mm) and the accepted FFC thickness is 0.20 mm.
The part is RoHS Compliant. The housing material is rated UL94 V-0.
