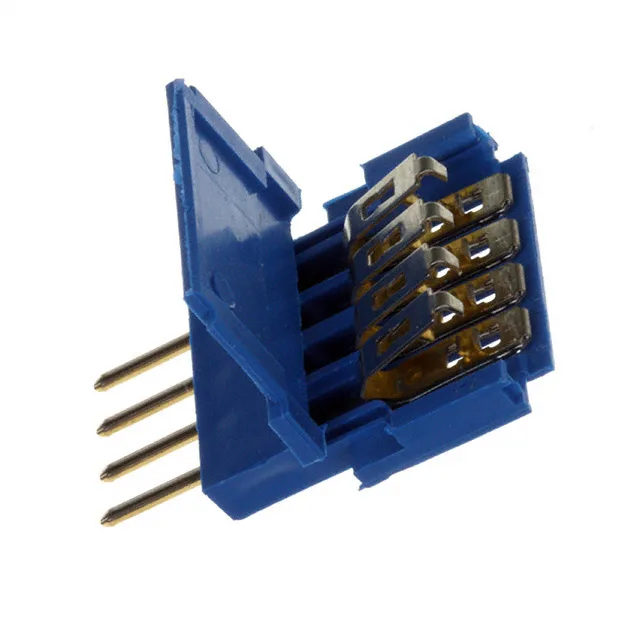

66226-036LF — Amphenol product photo
Amphenol

Amphenol ICC (FCI) 66226-036LF Clincher™ FFC Header, 4 Pos

MPN66226-036LF
Active

Amphenol ICC (FCI) Clincher™ FFC header, order code 66226-036LF, 4 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, gold or GXT™ contact finish, free-hanging in-line, solder termination, ZIF flip lock.

$1.4300Ref. price · indicative, final on quote
66226-036LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-036LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeTapered
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorNatural
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions4
Contact finish thickness30.0µin (0.76µm)

Product details

4-position FFC header with ZIF flip lock

The 66226-036LF is the 4-circuit member of Amphenol ICC (FCI)'s Clincher™ FFC header line, using a zero-insertion-force (ZIF) flip-lock actuator for cable retention.

Position count ladder in the Clincher™ series

Within the 66226 series the 4-position 66226-036LF sits between the 3-position 66226-035LF and the 5-position 66226-037LF — pitch, current rating, contact plating, and ZIF actuator are shared across the series, so match the position count to circuit count.

Frequently asked questions

What compliance documentation does Amphenol ICC (FCI) provide for 66226-036LF?

Full compliance documentation is available through the datasheet.
