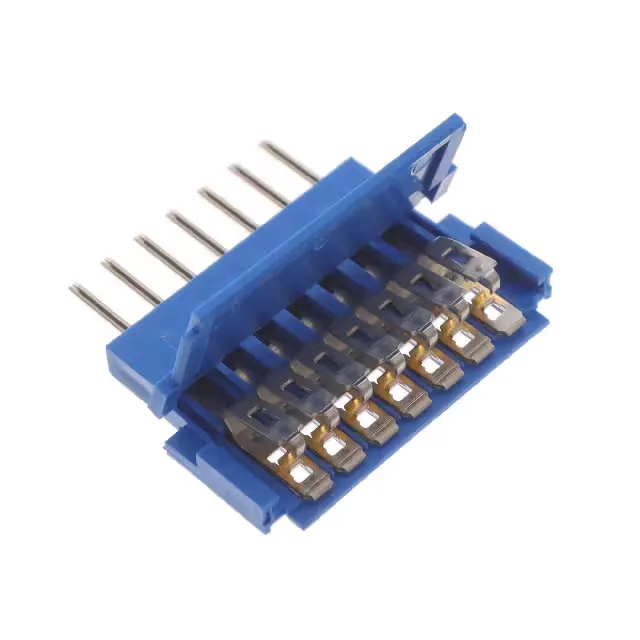

66226-039LF Amphenol ICC (FCI) Clincher™ FFC Header, 7 Pos

MPN66226-039LF
Active

Amphenol ICC (FCI) Clincher™ 66226-039LF, 7-position FFC header, 0.100" (2.54mm) pitch, ZIF flip lock, 30µin gold contacts, rated 2 A at 500 V, -65°C~105°C, UL94 V-0.

$2.2400Ref. price · indicative, final on quote
66226-039LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-039LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeNotched
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorNatural
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions7
Contact finish thickness30.0µin (0.76µm)

Product details

7-Position FFC Header with ZIF Flip Lock

Zero Insertion Force (ZIF) with a flip lock means the FFC slides in with no force on the contacts, then the actuator clamps down to hold the cable. That flip lock is the only retention — no secondary latch, so the lock must be fully closed before the assembly sees vibration. Contacts are 30µinch gold over copper nickel alloy — the gold thickness handles the 100-cycle rating without exposing the base metal to corrosion.

The 500 V rating is the voltage withstand between adjacent circuits; in a 24 V or 48 V signal application you have plenty of headroom.

Frequently asked questions

What pitch and position count does the 66226-039LF have?

This is a standard FFC header footprint — the board layout and the FFC cable must both match that pitch and circuit count.

Can the 66226-039LF be used with an FPC cable?

The 66226-039LF is specified for Flat Flex Type FFC, not FPC. The cable end type is notched, and the accepted FFC thickness is 0.20 mm. An FPC with a different thickness or end type may not seat correctly or lock in place.
