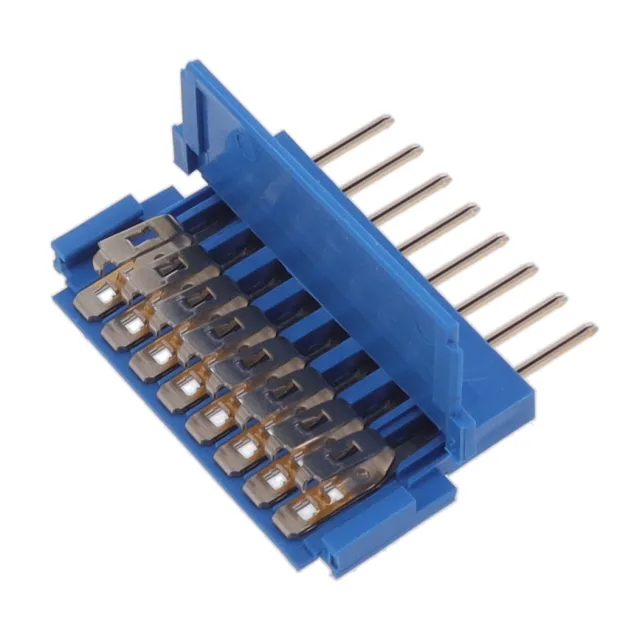

66226-040LF — Amphenol product photo
Amphenol

66226-040LF Amphenol ICC Clincher FFC Header 8 Pos 2.54mm

MPN66226-040LF
Active

Amphenol ICC (FCI) Clincher™ 66226-040LF, FFC header, 8 positions, 0.100" (2.54mm) pitch, ZIF flip lock, 30.0µin gold or GXT™ contacts, 2A, 500V, free-hanging in-line mount, solder termination, UL94 V-0 blue thermoplastic housing.

$2.5100Ref. price · indicative, final on quote
66226-040LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-040LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeNotched
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorNatural
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions8
Contact finish thickness30.0µin (0.76µm)

Product details

0.100" Pitch, 8-Position ZIF Header for FFC

The operating temperature span of -65°C to 105°C means this connector can live in an unheated industrial cabinet or a telecom enclosure that sees seasonal thermal cycling without the housing becoming brittle or the contacts losing spring force.

Free-Hanging In-Line Mount, Solder Termination

This header is designed for free-hanging (in-line) mounting — no board edge or panel cutout required. The solder termination pads are on the cable side, making it a straightforward hand-solder or wave-solder joint for a cable harness. The blue housing with a natural actuator colour provides visual polarity — the flip lock is the only moving part, and it snaps shut with an audible click when the FFC is fully seated.

Frequently asked questions

What FFC thickness does the 66226-040LF accept?

It accepts a 0.20mm thick FFC with a notched cable end. The ZIF actuator clamps directly onto the FFC pad area — no separate strain relief is needed.
