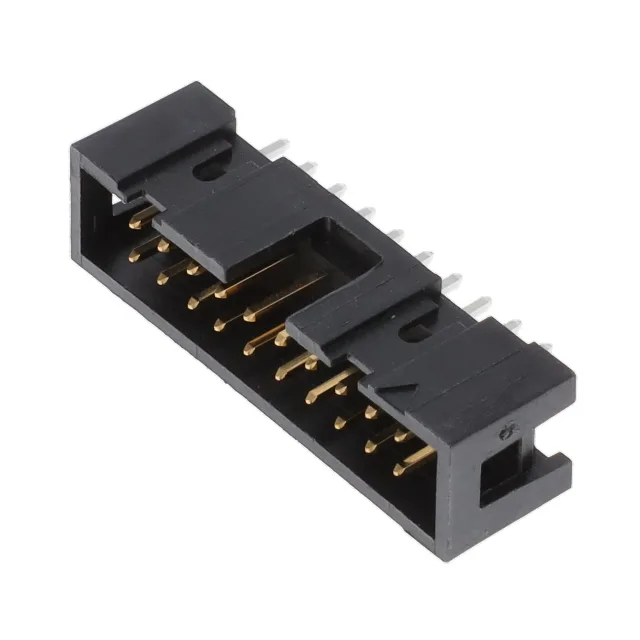

Amphenol ICC (FCI) Quickie™ header, order code 66506-007, 20 positions, dual row, 2.54 mm pitch, shrouded - 4 wall, through-hole, solder termination, gold or gold GXT™ mating contacts, 30.0µin (0.76µm) thickness.
Amphenol ICC (FCI) 66506-007 Quickie Header, 20 Pos 2.54mm
MPN66506-007
Active
Amphenol ICC (FCI) Quickie™ header, order code 66506-007, 20 positions, dual row, 2.54 mm pitch, shrouded - 4 wall, through-hole, solder termination, gold or gold GXT™ mating contacts, 30.0µin (0.76µm) thickness.
$1.2797Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.105\" (2.67mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for 66506-007?
The housing material meets UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from the manufacturer.
