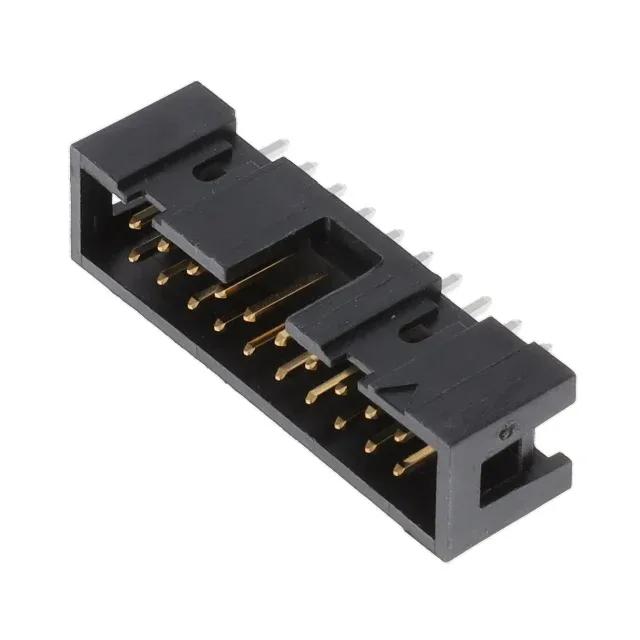

Amphenol ICC (FCI) Quickie™ series, 66506-007LF, 20-position dual-row vertical header, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, 30.0µin gold or GXT™ plating on mating contacts, UL94 V-0 glass-filled polyester housing.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.105\" (2.67mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 66506 series includes 10-position (66506-001LF) and 16-position (66506-043) variants with identical pitch, plating, and shrouding. The 20-position 66506-007LF is the highest circuit-count option in this series — choose it when the board-to-cable interconnect requires more signal lines than the 10- or 16-position versions support.
The 66506-007LF has 20 positions; the 66506-001LF has 10 positions. Both are dual-row, 0.100" pitch, shrouded 4-wall headers with 30.0µinch gold/GXT™ plating and the same UL94 V-0 housing material. The 20-position version is the higher circuit-count option in the series.
