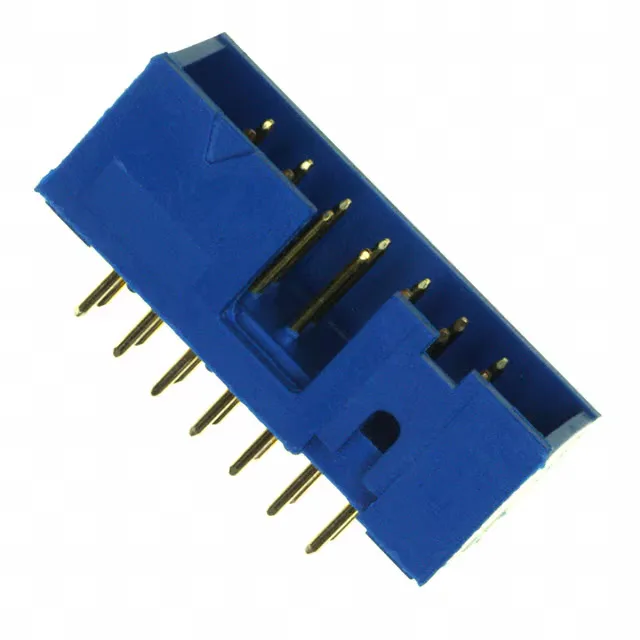

Amphenol ICC (FCI) Quickie™ series, 66506-038LF, Board to Cable/Wire header, 14 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through hole solder, male pin, gold 30µin, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 66506-038LF: The 2.54mm row spacing matches standard prototyping grids and IDC ribbon-cable pitch, simplifying layout for board-to-cable interconnects.
The contact finish is listed as Gold or Gold, GXT™ — both provide corrosion resistance and stable contact resistance across the operating life.
The keying slot prevents incorrect insertion of the mating receptacle — a common source of field rework.
The keying slot prevents the mating receptacle from being inserted in the wrong orientation, which avoids pin damage and miswiring during harness assembly.
