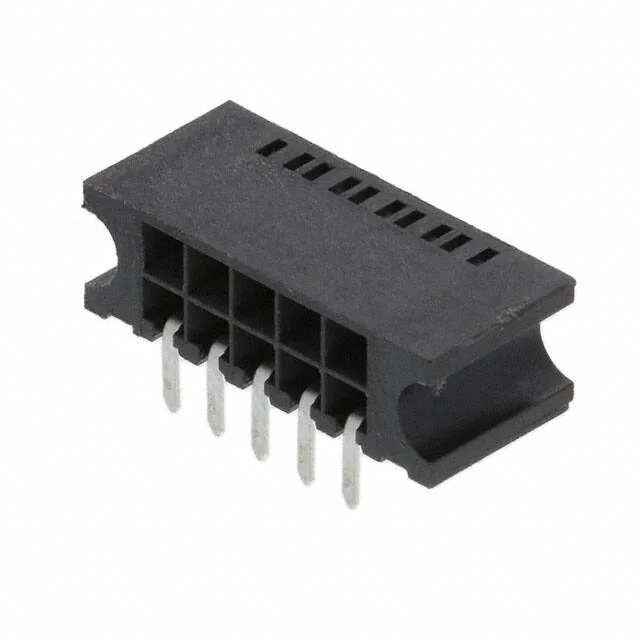

Amphenol ICC (FCI) Dubox receptacle, order code 66527-005LF, 10 positions, dual row, 0.100" (2.54mm) pitch, 1250 V, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Female Socket |
| Mounting type | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1250V |
| Operating temperature | -65°C~125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 66527-005LF is the 10-position member of Amphenol ICC (FCI)'s Dubox board-to-board receptacle line, dual-row, 0.100" (2.54mm) pitch. Gold-plated mating contacts rated 1250 V, through-hole right-angle mounting, solder termination. UL94 V-0 rated housing.
RoHS and REACH compliance documentation is available from the manufacturer upon request.
