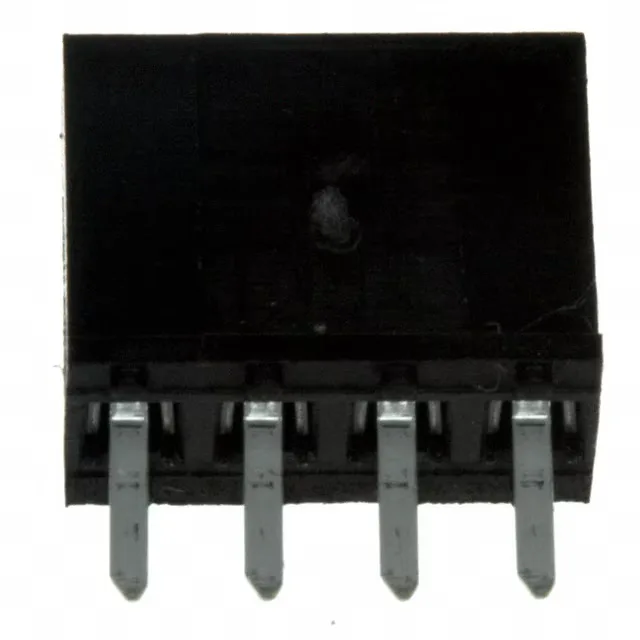

Amphenol ICC 66951-004 Dubox Receptacle, 4 Pos, 2.54 mm
MPN66951-004
Obsolete
Amphenol ICC (FCI) Dubox™, BergCon® PV™ receptacle, order code 66951-004, 4 positions, single row, 0.100" (2.54 mm) pitch, 1250 V, gold-plated mating contacts, through-hole, solder termination.
$0.3785Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™, BergCon® PV™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1250V |
| Operating temperature | -65°C~125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.325\" (8.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy the 66951-004 and how do I get a price?
The 66951-004 is sourced per RFQ against the BOM quantity. Submit a request for availability and pricing — no stock is held on the shelf.
What is the closest pin-compatible alternative to the 66951-004 in this Pin Headers, Sockets & Housings family?
No official pin-compatible replacement is published by Amphenol ICC (FCI).
What compliance documentation does Amphenol ICC (FCI) provide for the 66951-004?
Further compliance documentation (RoHS, REACH, UL listing) is not recorded in the available spec data for this part number.
