5-Position Single-Row Dubox™ Receptacle — Board-to-Board Fit
The UL94 V-0 glass-filled polyester housing holds its flame rating inside equipment that requires a flammability barrier.
Active Production — No End-of-Life Concern
RoHS compliant per.

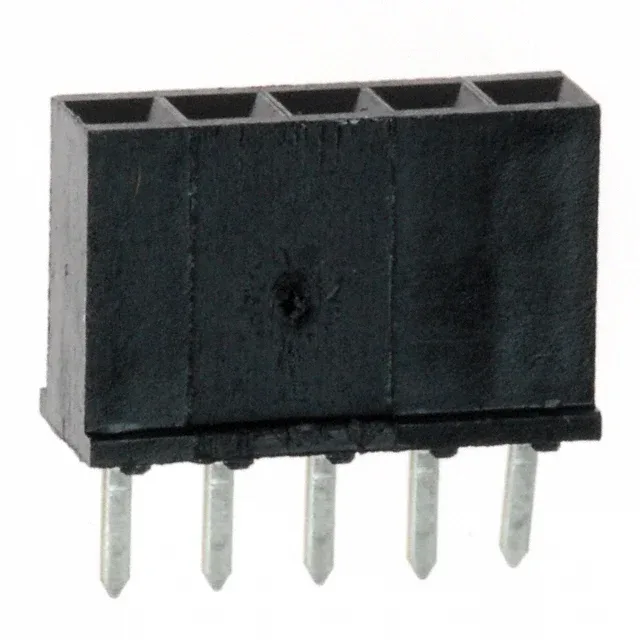

66951-005LF Amphenol ICC (FCI) Dubox™ 5-Pos Female Socket
MPN66951-005LF
Active
Amphenol ICC (FCI) Dubox™ / BergCon® PV™ 5-position single-row female socket receptacle, 0.100" (2.54mm) pitch, through-hole solder termination, 30 µinch gold mating finish, UL94 V-0 black polyester housing, rated -65°C to 125°C.
$2.6400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDubox™, BergCon® PV™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dubox™, BergCon® PV™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1250V |
| Operating temperature | -65°C~125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.325\" (8.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 66951-005LF?
The 66951-005LF is available to order through our distribution channel against an RFQ.
What is the closest functional second-source — 66951-006LF?
The 66951-006LF is the 6-position sibling, identical in pitch, plating, voltage rating, and temperature range. It is a direct drop-in if the BOM can accommodate one extra pin.
