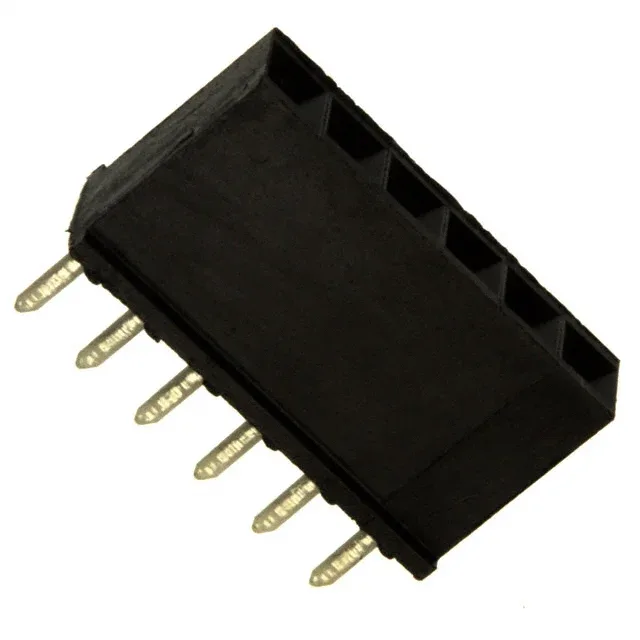

66951-006LF — Amphenol product photo
Amphenol

66951-006LF Amphenol ICC (FCI) Dubox 6-Position Receptacle

MPN66951-006LF
Active

Amphenol ICC (FCI) Dubox™ / BergCon® PV™, 6-position single-row receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold mating finish, UL94 V-0 black polyester housing, -65°C to 125°C operating range.

$2.6900Ref. price · indicative, final on quote
66951-006LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66951-006LF Technical Specifications
ParameterValue
SeriesDubox™, BergCon® PV™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating1250V
Operating temperature-65°C~125°C
Contact materialBrass
Insulation colorBlack
Insulation height0.325\" (8.25mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Fit: Pitch, Position Count, and Mating Interface

The 66951-006LF: The push-pull fastening means the connector is held by friction from the contact beams, not a latch — suitable for applications where the mating pair stays mated during normal service and is disconnected only for maintenance or rework.

Temperature Range and Flame Rating

Rated for -65°C to 125°C, this receptacle handles the thermal cycling found in automotive engine compartments, industrial cabinets, and outdoor telecom enclosures.

Frequently asked questions

Is 66951-006LF RoHS compliant?

Compliance with RoHS is often required for regulatory and environmental standards in many industries.

What is the current rating of 66951-006LF?

Knowing the current rating is critical for circuit design to ensure the connector can handle the load safely.

Does 66951-006LF have a locking mechanism?

A locking mechanism ensures a secure connection, especially in applications subject to vibration or movement.

Can 66951-006LF be used for wire-to-board connections?

Buyers need to know the intended application style to avoid misselection and ensure proper mating.

What is the difference between 66951-006LF and 66951-006?

Understanding suffix variations helps buyers identify the correct part for their requirements, especially when replacing or cross-referencing.

Where to buy 66951-006LF in small quantities?

Engineers or hobbyists often need small quantities for prototyping or repairs, requiring a distributor with low minimum orders.
