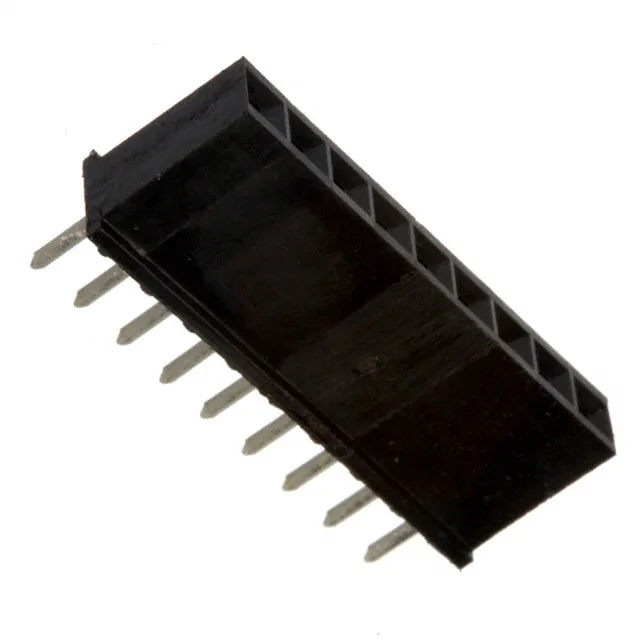

Amphenol ICC (FCI) Dubox™ / BergCon® PV™, 66951-009LF, 9-position single-row female socket header, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold mating finish, 1250 V rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dubox™, BergCon® PV™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1250V |
| Operating temperature | -65°C~125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.325\" (8.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 66951-009LF: Rated for 1250 V and an operating range of -65°C to 125°C, this receptacle suits industrial, automotive, medical, and telecom equipment where the board stack sees wide temperature swings and high-voltage isolation requirements.
The mating header must have square pins matching the female socket contact shape.
