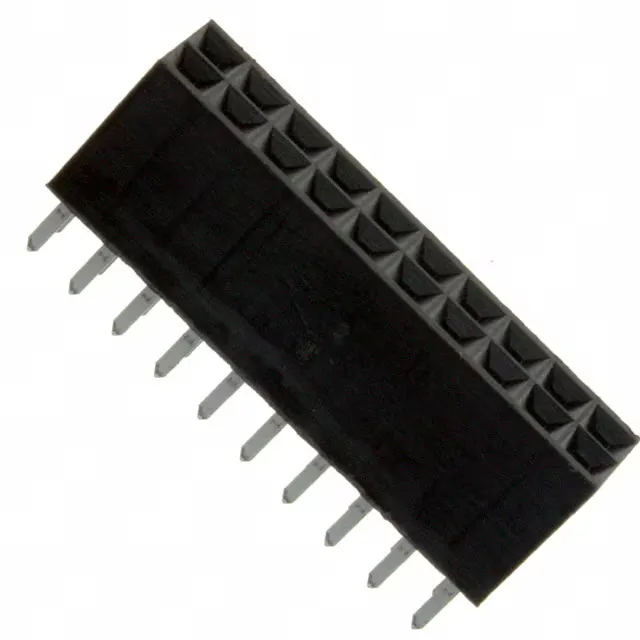

66953-010LF — Amphenol product photo
Amphenol

66953-010LF Amphenol ICC (FCI) 20-Position 0.100" Dual-Row

MPN66953-010LF
Active

Amphenol ICC (FCI) Dubox™ / BergCon® PV™, 20-position dual-row board-to-board receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold on mating contact, 1250V rating, UL94 V-0 black polyester housing.

$4.8000Ref. price · indicative, final on quote
66953-010LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66953-010LF Technical Specifications
ParameterValue
SeriesDubox™, BergCon® PV™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating1250V
Operating temperature-65°C~125°C
Contact materialBrass
Insulation colorBlack
Insulation height0.325\" (8.25mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-Position Dual-Row Board-to-Board Receptacle

The 66953-010LF: This is a 20-position, dual-row board-to-board receptacle from the Dubox™ and BergCon® PV™ series, built for stacking one PCB parallel to another. In a telecom or industrial card-edge application where the board is swapped quarterly, that gold thickness buys decades of reliable contact. Rated for 1250V, which is well above the typical 250-300V for a 2.54 mm pitch signal connector.

The tin-plated post (100 µinch) wets well with lead-free SAC solder. For a mezzanine stack, the total mated height depends on the header's own insulation height — check the mating header drawing to confirm clearance. In a high-vibration environment, consider a secondary board lock or a header with integral latches.

RoHS compliant per the entry.
