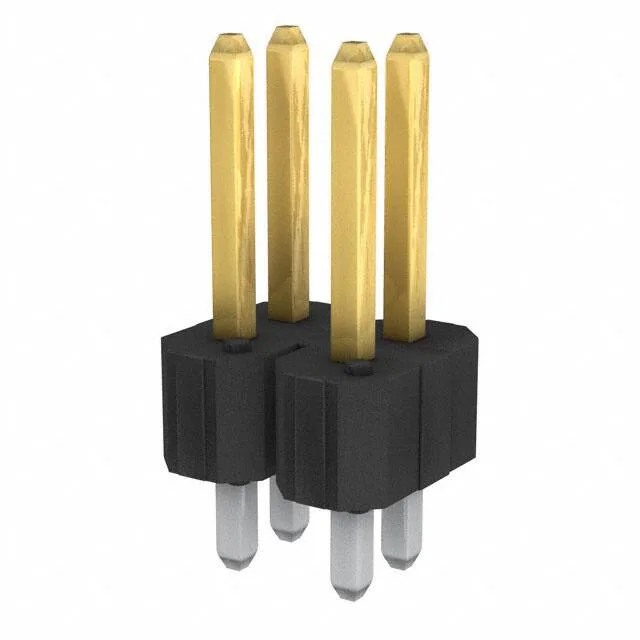

67996-104HLF — Amphenol product photo
Amphenol

67996-104HLF BERGSTIK II Header – 4 Pos, 2.54 mm Pitch, Gold

MPN67996-104HLF
Active

Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 4 circuits, 0.100" (2.54 mm) pitch, dual-row, through-hole solder termination, 30 µinch gold-plated mating contacts, rated 3 A per contact, UL94 V-0 black housing.

$0.4300Ref. price · indicative, final on quote
67996-104HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

67996-104HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.095\" (2.41mm)
Overall contact length0.425\" (10.80mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.100" Pitch, 4-Position Dual-Row – Board Fit

3 A per Contact – Signal and Low-Current Power

For a 4-position header carrying 3 A on all pins simultaneously, the total power dissipation stays under 1 W – well within the thermal budget for still-air convection in an enclosure. The solder tail is tin-plated, fine for a one-time wave-solder process.

RoHS compliant per the ledger entry – no conflict with EU or similar restricted-substance directives.

Cross-Reference: 4 vs 2 Positions

The 4-position version (this one) gives two extra pins for a second signal pair or a dedicated ground – useful when the harness needs a separate return path without sharing a common pin.

Frequently asked questions

What is the pin pitch of 67996-104HLF?

The mating pitch is 0.100" (2.54 mm) – standard breadboard-compatible spacing. The row-to-row spacing is also 0.100" (2.54 mm).

What is the difference between 67996-104HLF and 67996-102HLF?

The 67996-102HLF is a 2-position version of the same dual-row, 0.100" pitch header. This 67996-104HLF has 4 positions – two extra pins for an additional signal pair or a dedicated ground return.
